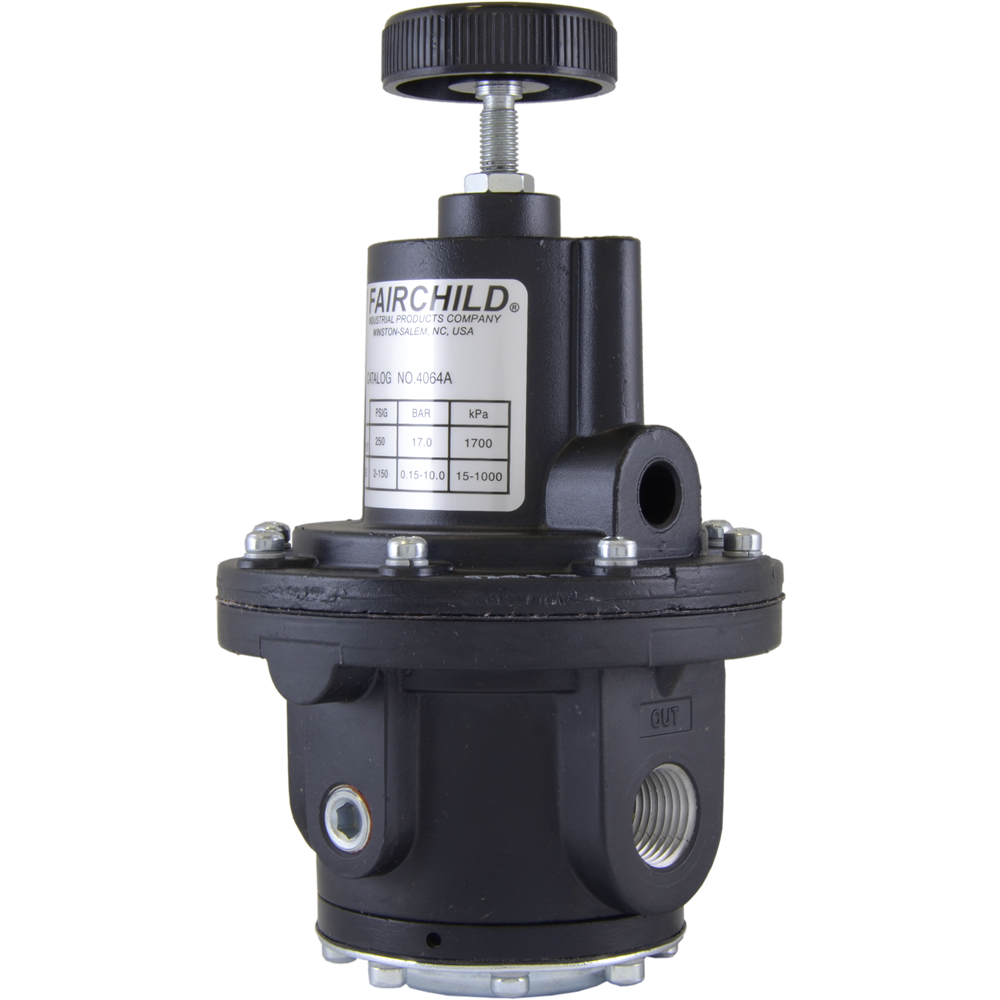

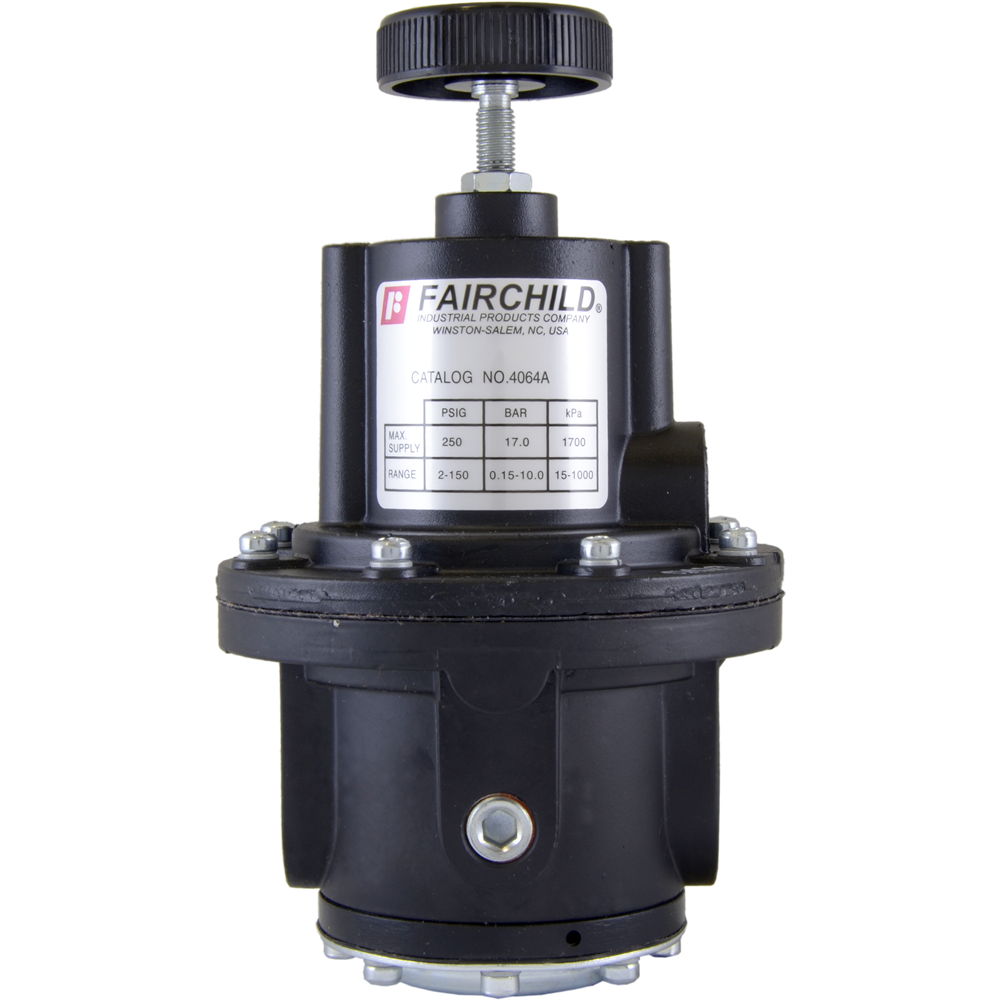

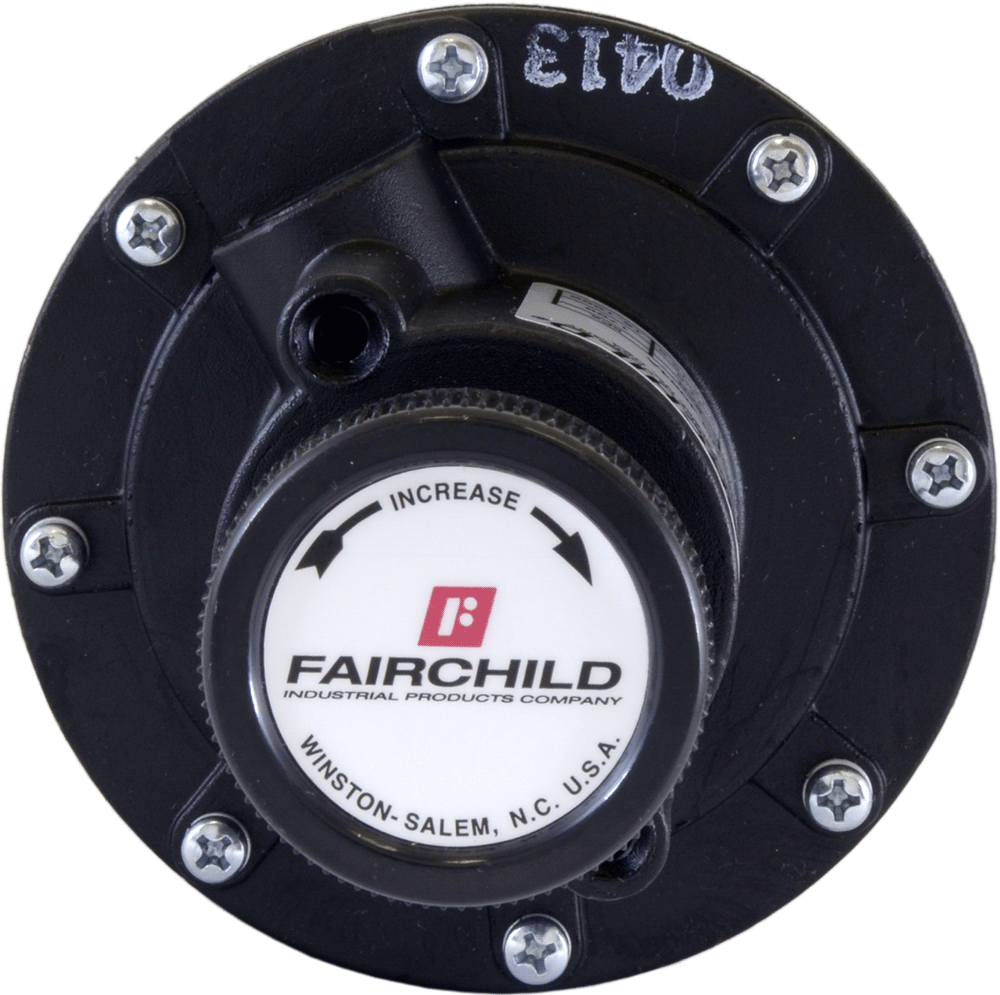

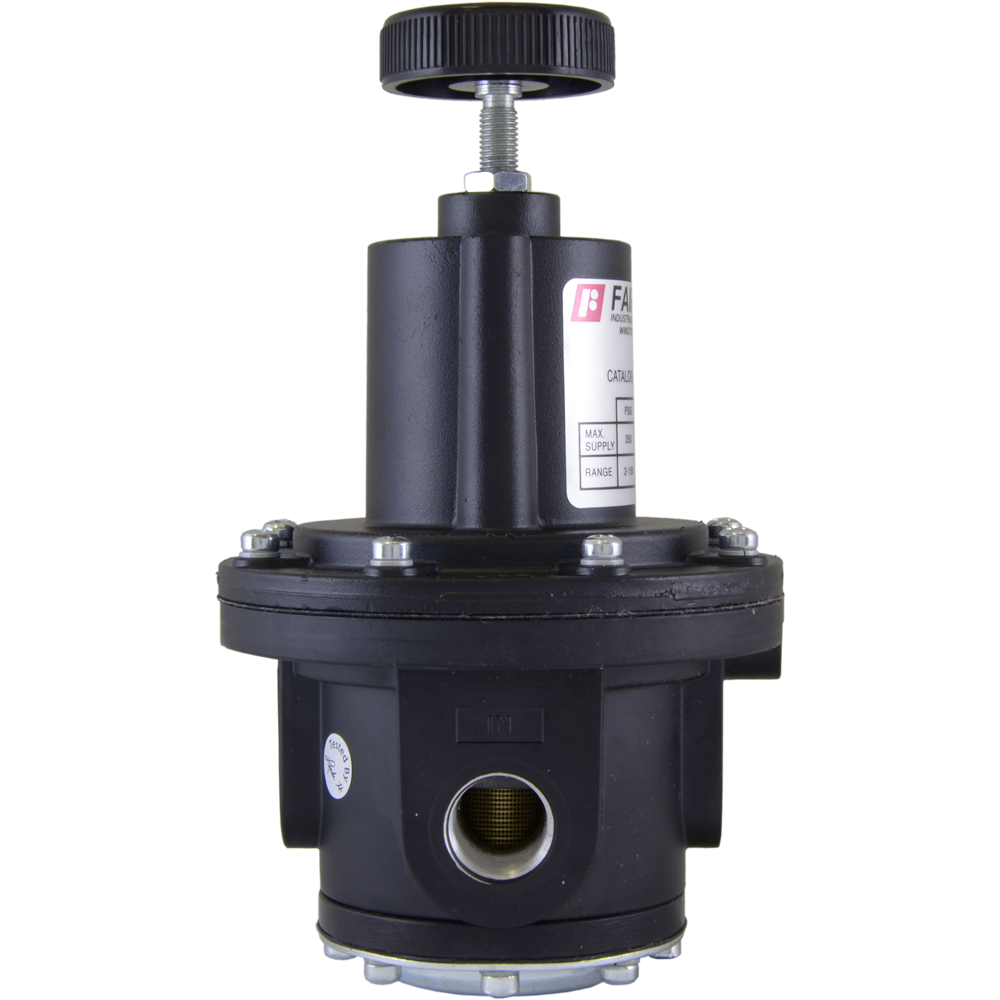

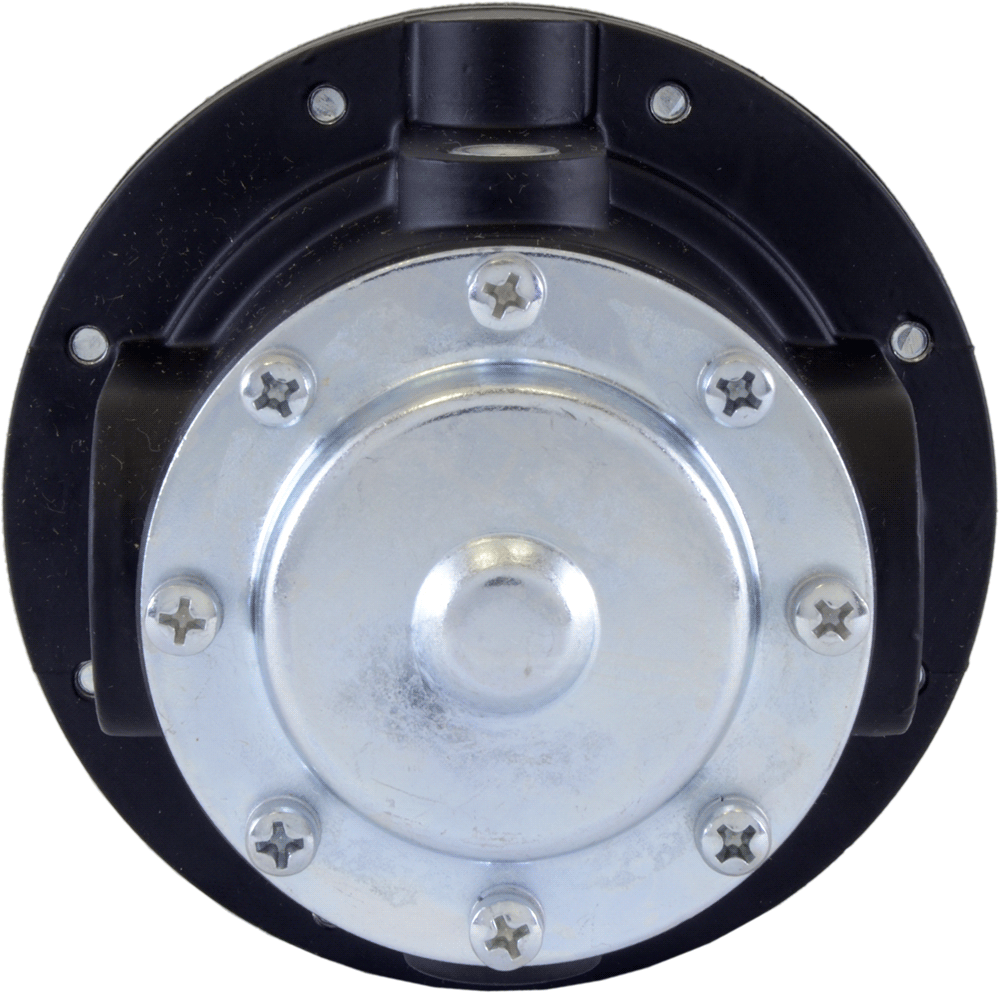

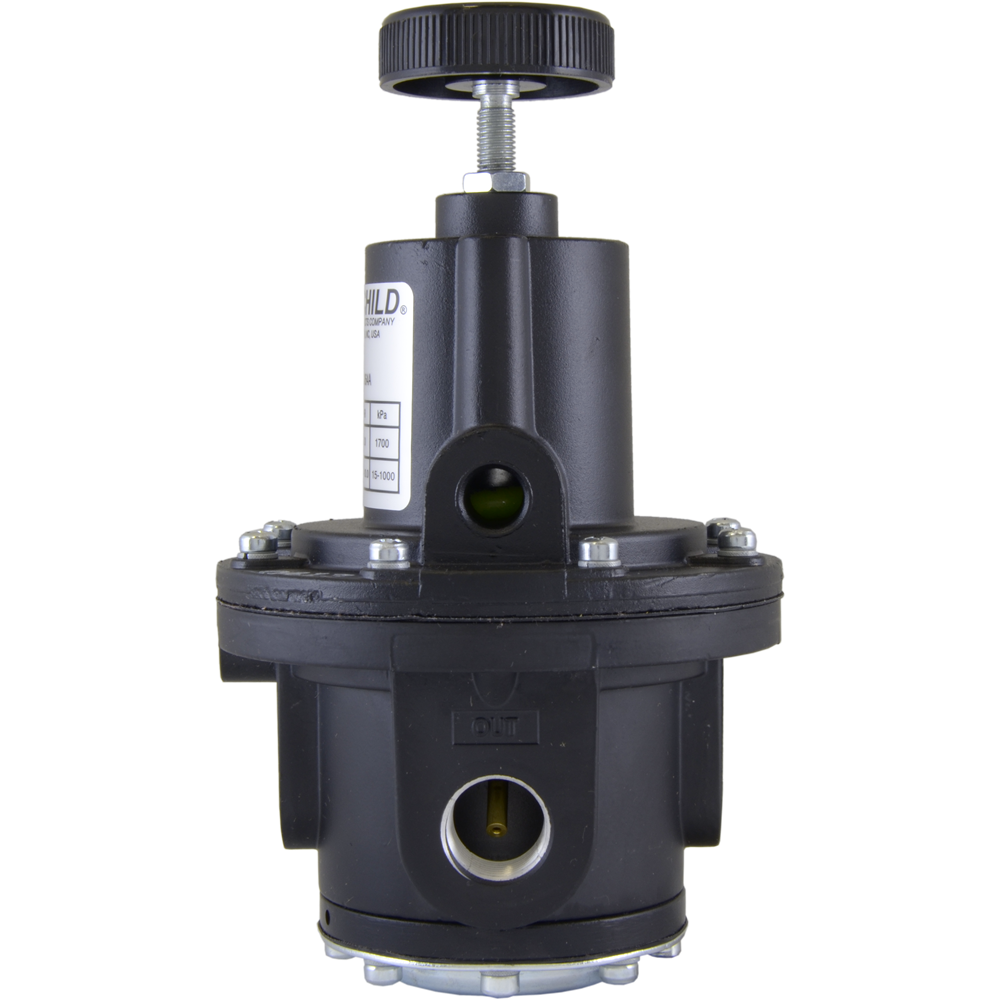

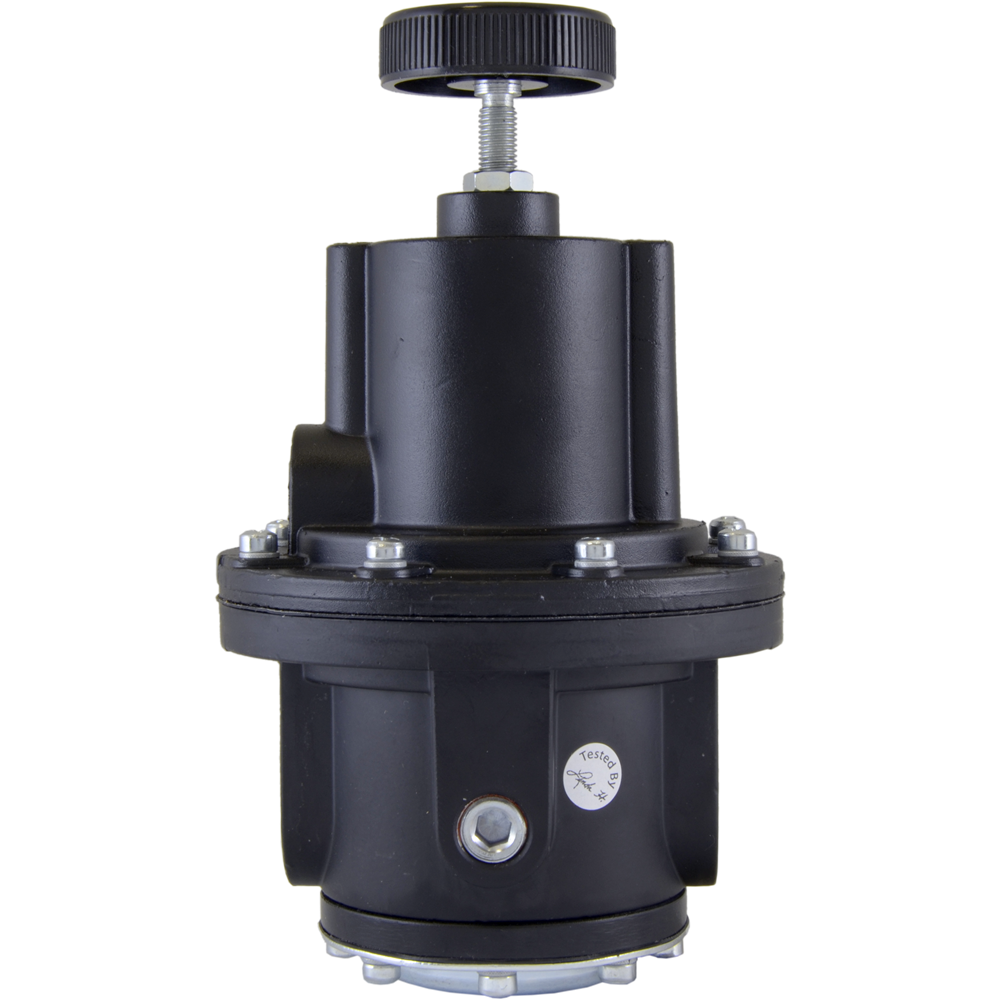

Model 4000A Pneumatic Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 4000A is a no bleed high flow precision pressure regulator designed for applications that require high performance, very low consumption and accurate process control.

The Model 4000A pneumatic regulator features control sensitivity of less than 0.5" water column, minimal consumption and high flow capacity to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 4000A pressure regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0.5-10 psi, 0.03-0.7 BAR, 3-70 kPa up to 5-250 psi, 0.35-17 BAR, 35-1,700 kPa. The Model 4000A has a flow capacity of up to 150 SCFM, 255 m3/hr.

Benefits
  • Excellent choice for high flow precision applications
  • Allows for use in high accuracy applications.
  • Provides high forward and exhaust flows.
  • Minimizes air consumption.
  • Minimizes the effect of any supply pressure variation.
  • Compensates for downstream pressure droop under flow conditions.
  • Eliminates hunting and buzzing.
  • Allows you service the Model 4000A without removing it from the line.
Features
  • Flow Capacity up to 150 SCFM, 255 m3/hr
  • Control sensitivity of 1/2" water column
  • Large Supply and Exhaust Valves
  • Soft Supply and Exhaust Valve
  • Balanced Supply Valve
  • Aspirator Tube
  • Separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 19 of 19 Part Numbers
4024A
4024A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 0.5-10 psig, 3.5-70 kPa, 1/2" NPT

Overview

  • Set Point Range: 0.5-10 psig, 0.035-0.7 bar, 3.5-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4024AT
4024AT
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 0.5-10 psig, 3.5-70 kPa, 1/2" NPT, Tamper Proof

Overview

  • Set Point Range:  0.5-10 psig, 0.035-0.7 bar, 3.5-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Options:
    • Tamper Proof
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4034A
4034A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 0.5-30 psig, 3.5-200 kPa, 1/2" NPT

Overview

  • Set Point Range: 0.5-30 psig, 0.035-2 bar, 3.5-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4034AEJ
4034AEJ
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 0.5-30 psig, 3.5-200 kPa, 1/2" NPT, Tapped Exhaust, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0.5-30 psig, 0.035-2 bar, 3.5-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Options: Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Viton

4036A
4036A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 0.5-30 psig, 3.5-200 kPa, 3/4" NPT

Overview

  • Set Point Range: 0.5-30 psig, 0.035-2 bar, 3.5-200 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 3/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4044A
4044A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 1-60 psig, 7-400 kPa, 1/2" NPT

Overview

  • Set Point Range: 1-60 psig, 0.07-4 bar, 7-400 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron

4044AT
4044AT
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 1-60 psig, 7-400 kPa, 1/2" NPT, Tamper Proof

Overview

  • Set Point Range: 1-60 psig, 0.07-4 bar, 7-400 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron

  • Options: Tamper Proof
4046A
4046A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 1-60 psig, 7-400 kPa, 3/4" NPT

Overview

  • Set Point Range: 1-60 psig, 0.07-4 bar, 7-400 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 3/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4064A
4064A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4064AE
4064AE
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT, Tapped Exhaust

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Options:
    • Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4064AEJ
4064AEJ
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT, Tapped Exhaust, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Options:
    • Tapped Exhaust
    • Viton Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron

4064AT
4064AT
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT, Tamper Proof

Overview

  • Set Point Range: 0.5-10 psig, 0.035-0.7 bar, 3.5-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Pipe Size: 1/2" NPT
  • Options:
    • Tamper Proof
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Nitrile on Dacron
4064AU
4064AU
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" BSPT (Tapered)

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" BSPT (Tapered)
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron

4066A
4066A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/4" NPT

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 3/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4066AJ
4066AJ
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/4" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0.5-10 psig, 0.035-0.7 bar, 3.5-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Pipe Size: 3/4" NPT
  • Options:
    • Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Nitrile on Dacron

4066AT
4066AT
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/4" NPT, Tamper Proof

Overview

  • Set Point Range: 0.5-10 psig, 0.035-0.7 bar, 3.5-70 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Pipe Size: 3/4" NPT
  • Options:
    • Tamper Proof

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Nitrile on Dacron

4073A
4073A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 5-250 psig, 35-1700 kPa, 3/8" NPT

Overview

  • Set Point Range: 5-250 psig, 0.35-17 bar, 35-1700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4074A
4074A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 5-250 psig, 35-1700 kPa, 1/2" NPT

Overview

  • Set Point Range: 5-250 psig, 0.35-17 bar, 35-1700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron
4076A
4076A
FAIRCHILD Model 4000A Pneumatic Pressure Regulator, 5-250 psig, 35-1700 kPa, 3/4" NPT

Overview

  • Set Point Range: 5-250 psig, 0.35-17 bar, 35-1700 kPa
  • Supply Pressure (Maximum): 250 psig, 17 bar, 1700 kPa
  • Ambient Temperature: -40°F to +200°F (-40°C to +93.3°C)
  • Pipe Size: 3/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Nitrile on Dacron

1 - 19 of 19 Part Numbers

Model 4000A

Port Size

Port Thread

Elastomers

Actuation Adjustment Means

Exhaust Port

Specifications

Actuator Type

  • Knob Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 3/4" BSPP Female
  • 3/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • FluoroCarbon (Viton)
  • Nitrile on Dacron

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 40 scfm
  • 40 scfm (65 m³/hour) Where Downstream Pressure is psig: 5 (bar: 0.35, kPa: 35) Above psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 65.2 m³/hour

Flow Capacity

  • 150 scfm (255 m³/hour)
  • 255 m³/hour

Media

  • Compressed Air
  • Gas

NPT Connection

  • 1/2" NPT Female
  • 3/4" NPT Female
  • 3/8" NPT Female

Pressure Range

  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • bar: 0.34 to 27.20
  • bar: 0.35 to 17
  • kPa: 13.6 to 1,020
  • kPa: 3.4 to 204
  • kPa: 3.5 to 1,700
  • kPa: 34 to 2,720
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0.5 to 250
  • psig: 1 to 60
  • psig: 2 to 150
  • psig: 5 to 400

Relief

  • Relieving

Sensitivity

  • 1/2" WC (1.27 cm)

Supply Pressure - Maximum

  • bar: 17
  • kPa: 1,700
  • psig: 250

Supply Pressure Effect

  • less than 0.007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.7)
  • less than psig: 0.1 (bar: 0.007, kPa: 0.7)
  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust
The Rotork Fairchild Model 4000A is a no bleed high flow precision pressure regulator designed for applications that require high performance, very low consumption and accurate process control.

The Model 4000A pneumatic regulator features control sensitivity of less than 0.5" water column, minimal consumption and high flow capacity to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 4000A pressure regulator will handle a 250 psi, 17 BAR maximum supply pressure and offers five (5) output pressure ranges from 0.5-10 psi, 0.03-0.7 BAR, 3-70 kPa up to 5-250 psi, 0.35-17 BAR, 35-1,700 kPa. The Model 4000A has a flow capacity of up to 150 SCFM, 255 m3/hr.

Benefits
  • Excellent choice for high flow precision applications
  • Allows for use in high accuracy applications.
  • Provides high forward and exhaust flows.
  • Minimizes air consumption.
  • Minimizes the effect of any supply pressure variation.
  • Compensates for downstream pressure droop under flow conditions.
  • Eliminates hunting and buzzing.
  • Allows you service the Model 4000A without removing it from the line.
Features
  • Flow Capacity up to 150 SCFM, 255 m3/hr
  • Control sensitivity of 1/2" water column
  • Large Supply and Exhaust Valves
  • Soft Supply and Exhaust Valve
  • Balanced Supply Valve
  • Aspirator Tube
  • Separate Control Chamber isolates the diaphragm from the main flow
  • Unit construction
