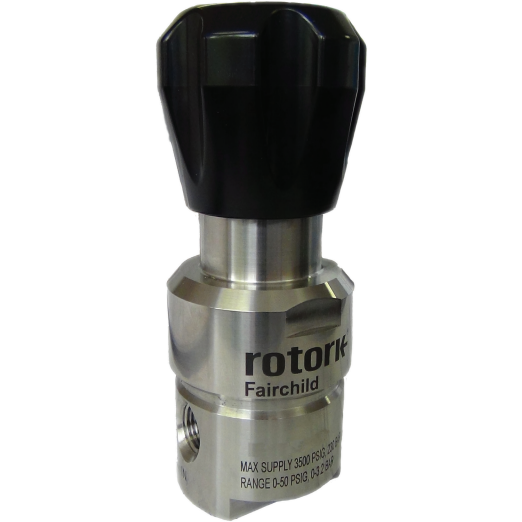

Model HPD High Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure.

The HPD pressure regulator is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.

The Rotork Fairchild HPD pressure regulator will handle a 6,000 psi, 414 BAR, maximum supply pressure and offers five (5) output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3,500 kPa.

The HPD high pressure regulator also offers a supply valve Cv of 0.06. The HPD high pressure regulator also offers a supply valve Cv of 0.06. The Rotork Fairchild HPD incorporates a new patented valve and valve seat to prevent leakage, which commonly occurs with high supply pressures.
Features
  • High Supply Pressure of 6000 psig
  • Standard X-750 Inconel Diaphragm
  • Three Seat Material Choices (PEEK, CTFE, Vespel)
  • Tamper Proof Option
  • Five Pressure Ranges Available
  • Ambient Temperature range of -40° to 500° F
  • Panel Mounting Option
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 31 of 31 Part Numbers
HPD132NASPKRP
HPD132NASPKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-25 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 0 to 25 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD132NBSTKNN
HPD132NBSTKNN
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-25 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Non-Relieving

Overview

  • Supply Pressure: 0-25 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlet, 2 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Non-Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD132NBSTKNP
HPD132NBSTKNP
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-25 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Non-Relieving, Panel Mount

Overview

  • Supply Pressure: 0-25 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlet, 2 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Non-Relieving
  • Mounting: Panel Mount
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD142NASPKRP
HPD142NASPKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-50 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 0 to 50 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD142NASPKRPS
HPD142NASPKRPS
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-50 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount, Straight Vent

Overview

  • Supply Pressure: 0 to 50 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Exhaust Vent:  Straight
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD142NASTKRN
HPD142NASTKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-50 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 1-50 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD142NASTKRNE
HPD142NASTKRNE
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-50 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving, Tapped Exhaust

Overview

  • Supply Pressure: 1-50 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

  • Exhaust Vent:  Tapped
HPD142NASVKRPE
HPD142NASVKRPE
FAIRCHILD Model HPD High Pressure Precision Regulator, 0-50 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, Vespel Seat, Knob Adjust, Relieving, Panel Mount, Tapped Exhaust

Overview

  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 4: Supply Pressure: 0-50 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • V: Seat Material: Vespal
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • E: Exhaust: Tapped
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASPKRN
HPD152NASPKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 1-100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
HPD152NASPKRP
HPD152NASPKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 1 to 100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASPKRPS
HPD152NASPKRPS
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount, Straight Vent

Overview

  • Supply Pressure: 1 to 100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Exhaust Vent:  Straight
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASPTNNS
HPD152NASPTNNS
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Tamper Proof, Non-Relieving, Straight Vent

Overview

  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • T: Actuator: Tamper Proof
  • N: Relief: Non-Relieving
  • N: Mounting: None
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASTKNN
HPD152NASTKNN
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Non-Relieving

Overview

  • Supply Pressure: 1-100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Non-Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASTKRN
HPD152NASTKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 1-100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASTKRNS
HPD152NASTKRNS
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving, Straight Vent

Overview

  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • T: Seat Material: CTFE
  • K: Actuator: Knob
  • R: Relief: Relieving
  • N: Mounting: None
  • S: Exhaust Vent: Straight
  • Maximum Supply Pressure: 3500 psig, 241 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NASVKRPE
HPD152NASVKRPE
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, Vespel Seat, Knob Adjust, Relieving, Panel Mount, Tapped Exhaust

Overview

  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • V: Seat Material: Vespal
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • E: Exhaust: Tapped
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD152NBSPKRN
HPD152NBSPKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 1-100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlet, 2 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel
HPD152NBSTKNN
HPD152NBSTKNN
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Non-Relieving

Overview

  • Supply Pressure: 1-100 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlet, 2 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Non-Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD172NASPKRN
HPD172NASPKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 2-250 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 2-250 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: FNPT
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD172NASPKRP
HPD172NASPKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 2-250 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 2 to 250 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD172NASTKRN
HPD172NASTKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 2-250 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 2-250 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: FNPT
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD172UASVKRP
HPD172UASVKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 2-250 psig, 1/4" BSPT (Tapered), 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, Vespel Seat, Knob Adjust, Relieving, Panel Mount, Tapped Exhaust

Overview

  • Supply Pressure: 2-250 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: BSPT
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: Vespel
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NASPKRN
HPD192NASPKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 5-500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NASPKRP
HPD192NASPKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 5 to 500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: PEEK
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NASTKRN
HPD192NASTKRN
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving

Overview

  • Supply Pressure: 5-500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NASTKRNE
HPD192NASTKRNE
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving, Tapped Exhaust

Overview

  • Supply Pressure: 5-500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Exhaust: Tapped
  • Relief: Relieving
  • Mounting: None
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NASVKRPE
HPD192NASVKRPE
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, Vespel Seat, Knob Adjust, Relieving, Panel Mount, Tapped Exhaust

Overview

  • HPD: High Pressure Precision Regulator
  • 1: Supply Valve Cv: 0.06
  • 9: Supply Pressure: 5-500 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • V: Seat Material: Vespal
  • K: Actuator: Knob
  • R: Relief: Relieving
  • P: Mounting: Panel
  • E: Exhaust: Tapped
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NBSTKRP
HPD192NBSTKRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, CTFE Seat, Knob Adjust, Relieving, Panel Mount

Overview

  • Supply Pressure: 5-500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlets, 2 Outlet)
  • Seat Material: CTFE
  • Actuator: Knob
  • Relief: Relieving
  • Mounting: Panel Mount
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD192NBSTTRP
HPD192NBSTTRP
FAIRCHILD Model HPD High Pressure Precision Regulator, 5-500 psig, 1/4" FNPT, 4-Port (2 Inlets, 2 Outlets), 316 Stainless Steel Body, CTFE Seat, Tamper Proof, Relieving, Panel Mount

Overview

  • Supply Pressure: 5-500 psig
  • Maximum Supply Pressure: 6000 psig, 414 bar, 41400 kPa
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Port Size: 1/4"
  • Port Thread: NPTF
  • Port Configuration: 4 Port (2 Inlets, 2 Outlet)
  • Seat Material: CTFE
  • Actuator: Tamper Proof
  • Relief: Relieving
  • Mounting: Panel Mount
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPD352NASPKRNE
HPD352NASPKRNE
FAIRCHILD Model HPD High Pressure Precision Regulator, 1-100 psig, 1/4" FNPT, 2-Port (1 Inlet, 1 Outlet), 316 Stainless Steel Body, PEEK Seat, Knob Adjust, Relieving, Tapped Exhaust

Overview

  • HPD: High Pressure Precision Regulator
  • 3: Supply Valve Cv: 0.25
  • 5: Supply Pressure: 1-100 psig
  • 2: Port Size: 1/4"
  • N: Port Thread: NPTF
  • A: Port Configuration: 2 Port (1 Inlet, 1 Outlet)
  • S: Body Material: 316 SST
  • P: Seat Material: PEEK
  • K: Actuator: Knob
  • R: Relief: Relieving
  • N: Mounting: None
  • E: Exhaust: Tappped
  • Maximum Supply Pressure: 6000 psig, 414 bar
  • Ambient Temperature: -40°F to +500°F (-40°C to +260°C)
  • Materials of Construction:
    • Body and Housing: 316 Alloy Stainless Steel
    • Valve: 316 Stainless Steel
    • Diaphragm: Alloy X-750 Inconel

HPH-1-5-2-N-N-R
HPH-1-5-2-N-N-R
FAIRCHILD Model HPH High Pressure Precision Regulator, 0-5000 psig, 1/4" FNPT, Nitrile Elastomers, Relieving

Overview

  • HPH: High Pressure - Pressure Reducing Regulator
  • 1: Revision
  • 5: 0-5000 psi, 0-34,500 kPa
  • 2: 1/4" Port Size
  • N: Female NPT Port Thread
  • N: Nitrile Elastomers (-40° to +80°C)
  • R: Relieving
  • Max. Inlet Pressure: 10,000 psi
1 - 31 of 31 Part Numbers

Model HPD

Pressure Range

Port Thread

Port Arrangement

Seat Material

Actuation Adjustment Means

Relief

Mounting

Exhaust Vent

Specifications

Actuator Type

  • Knob Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 260° C (-40° to 500° F)

BSP Connection

  • 1/4" BSPT Female

Elastomers

  • Inconel®

Enclosure, Body Material

  • 316L Stainless Steel

Exhaust Capacity - Relieving Units Only

  • 0.02 Cv
  • 5.5 scfm
  • 5.5 scfm (9.35 m³/hour)
  • 9.4 m³/hour

Flow Capacity

  • 0.06 Cv

Media

  • Compressed Air
  • Gas

Mounting

  • None
  • Panel Mount

NPT Connection

  • 1/4" NPT Female

Pressure Range

  • bar: 0 to 34.47
  • kPa: 0 to 3,447
  • psig: 0 to 500

Relief

  • Non-Relieving
  • Relieving

Seat/Seal Material

  • CTFE
  • PEEK®
  • Vespel

Supply Pressure - Maximum

  • bar: 414
  • kPa: 41,368
  • psig: 6,000

Supply Pressure Effect

  • less than 0.137 bar
  • less than psi: 1.99 (bar: 0.14, kPa: 13.7)
  • less than psig: 2 (bar: 0.137, kPa: 13.7) Change for psig: 100 (bar: 7.0, kPa: 700) Change in Supply Pressure
  • less than psig: 2 (bar: 0.14, kPa: 14)

Trim Material

  • 316L Stainless Steel
The Rotork Fairchild HPD is a High Pressure Regulator designed for applications that have high supply pressures and require a much lower output pressure.

The HPD pressure regulator is constructed of rugged 316L Stainless Steel for corrosion resistance and durability. The HPD is available in a 2 or 4 port configuration.

The Rotork Fairchild HPD pressure regulator will handle a 6,000 psi, 414 BAR, maximum supply pressure and offers five (5) output pressure ranges from 0-25 psi, 0-1.7 BAR, 0-170 kPa, up to 5-500 psi, 0.35-35 BAR, 35-3,500 kPa.

The HPD high pressure regulator also offers a supply valve Cv of 0.06. The HPD high pressure regulator also offers a supply valve Cv of 0.06. The Rotork Fairchild HPD incorporates a new patented valve and valve seat to prevent leakage, which commonly occurs with high supply pressures.
Features
  • High Supply Pressure of 6000 psig
  • Standard X-750 Inconel Diaphragm
  • Three Seat Material Choices (PEEK, CTFE, Vespel)
  • Tamper Proof Option
  • Five Pressure Ranges Available
  • Ambient Temperature range of -40° to 500° F
  • Panel Mounting Option
