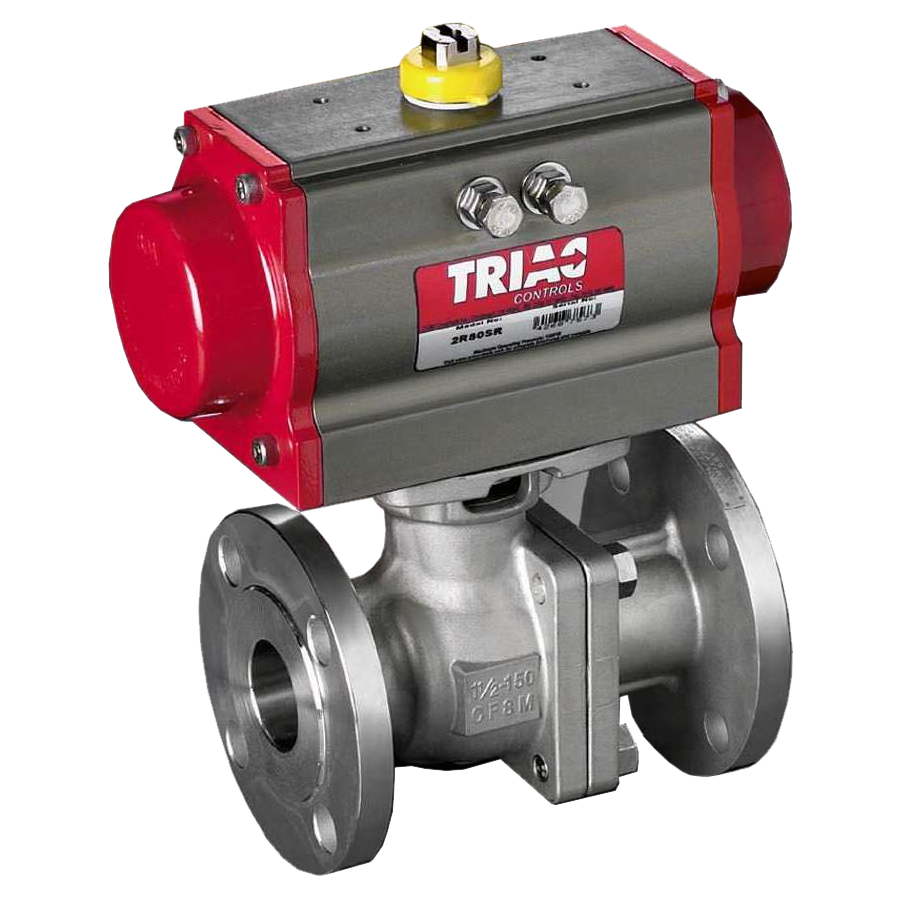

FD9 Series 300# Flanged Automated Ball Valve

Brand: A-T Controls, Inc.

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 25 of 25 Part Numbers
FD9-3X-100/2R3S-BX
FD9-3X-100/2R3S-BX
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body 300# Flange, 1", Spring Return,w/RTFE
FD9-3X-100/2R3S-BXV
FD9-3X-100/2R3S-BXV
A-T CONTROLS Series FD9 Ball Valve, Firesafe, Split Body 300# Flange, 1", Spring Return, Vented Ball
FD9-3X-200/2R4S-XX-LT
FD9-3X-200/2R4S-XX-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 2" x 300# Flange, RTFE, 2R130SR Pneumatic Actuator, Spring Return, Low Temperature

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2R130 Spring Return
  • Options:
    • Low Temperature Actuator

FD9-3X-200/2R5S-XX-LT
FD9-3X-200/2R5S-XX-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 2" x 300# Flange, RTFE, 2R200SR Pneumatic Actuator, Spring Return, Low Temperature

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2R200 Spring Return
  • Options:  Low Temperature Actuator
FD9-3X-300/2R6D-XX-LT
FD9-3X-300/2R6D-XX-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 3" x 300# Flange, RTFE, 2R300DA Pneumatic Actuator, Double Acting, Low Temperature

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 3" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2R300 Double Acting
  • Options:
    • Low Temperature Seals

FD9-3X-300/2R7S-XX-LT
FD9-3X-300/2R7S-XX-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 3" x 300# Flange, RTFE, 2R500SR Pneumatic Actuator, Spring Return, Low Temperature

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 3" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: 316 Stainless Steel
    • Trim: 316 Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2R500 Spring Return
  • Options:
    • Low Temperature Seals

FD9-3X-400/XEE1-RX
FD9-3X-400/XEE1-RX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 4" x 150# Flange, RTFE, XE-2640 Electric On/Off Acutator, 24VDC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 24 VDC
FD9-3X-400/XEE1-WX
FD9-3X-400/XEE1-WX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 4" x 150# Flange, RTFE, XE-2640 Electric On/Off Acutator, 12VDC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 12 VDC
FD9-3X-400/XEE1-XX
FD9-3X-400/XEE1-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 4" x 150# Flange, RTFE, XE-2640 Electric On/Off Acutator, 120VAC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Stainless Steel
    • Trim: Stainless Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 115 VAC
FD9C03X-200/2R5S-XX
FD9C03X-200/2R5S-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 2" x 300# Flange, RTFE, 2R200SR Pneumatic Actuator, Spring Return

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2000 In-Lbs. Spring Return
FD9C-3X-200/2R4S-XX
FD9C-3X-200/2R4S-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 2" x 300# Flange, RTFE, 2R130SR Pneumatic Actuator, Spring Return

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2000 In-Lbs. Spring Return
FD9-C-3X-200/2R4S-XX
FD9-C-3X-200/2R4S-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 2" x 300# Flange, RTFE, 2R130SR Pneumatic Actuator, Spring Return

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 1300 In-Lbs. Spring Return
FD9C-3X-200/2R5S-XX
FD9C-3X-200/2R5S-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 2" x 300# Flange, RTFE, 2R200SR Pneumatic Actuator, Spring Return

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2000 In-Lbs. Spring Return
FD9C-3X-200/WEB1-XX
FD9C-3X-200/WEB1-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 2" x 300# Flange, RTFE, WE-690 Electric On/Off Acutator, 120VAC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 2" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric Modulating: WEM-690
FD9C-3X-300/2R8S-XX
FD9C-3X-300/2R8S-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 3" x 300# Flange, RTFE, 2R850SR Pneumatic Actuator, Spring Return

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 3" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Pneumatic: 2R850 Spring Return
FD9C-3X-400/XEE1-RX
FD9C-3X-400/XEE1-RX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 4" x 300# Flange, RTFE, XE-2640 Electric On/Off Acutator, 24VDC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 24 VDC
FD9C-3X-400/XEE1-WX
FD9C-3X-400/XEE1-WX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 4" x 300# Flange, RTFE, XE-2640 Electric On/Off Acutator, 12VDC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 12 VDC
FD9C-3X-400/XEE1-XX
FD9C-3X-400/XEE1-XX
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, Carbon Steel, 4" x 300# Flange, RTFE, XE-2640 Electric On/Off Acutator, 120VAC

Overview

  • Design: Firesafe, Direct Mount Flanged
  • Size: 4" NPT
  • Port: Full
  • Direct Mount: Yes
  • Pyramidal Stem Packing: Yes
  • Materials of Construction:
    • Body: Carbon Steel
    • Trim: Carbon Steel
    • Seats: Reinforced TFE

  • End Connections: 300# Flanged Ends
  • Actuator-Electric On/Off: 2640 In-Lbs, 115 VAC
FD9C-F3-0200-XXX
FD9C-F3-0200-XXX
A-T CONTROLS Series FD9 Ball Valve, Carbon Steel,Direct Mt. Split Body 300# Flange, 2", RTFE
FD9-F3-100/2R3S-BX-V
FD9-F3-100/2R3S-BX-V
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 1" x 300# Flange, RTFE, 2R80SR Pneumatic Actuator, Spring Return, Type 7 Solenoid 120VAC, Vented Ball

Overview

  • 316 full port
  • 1” 300 lb ball valve
  • Complete vented balls upstream
  • Complete with spring return pneumatic actuators
  • Sized at 80 psi
  • C/W TSM Stem Extension
  • Explosion proof solenoid as per spec CSA certified
FD9-F3-100/2R3S-BX-V-LT
FD9-F3-100/2R3S-BX-V-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 1" x 300# Flange, RTFE, 2R80SR Pneumatic Actuator, Spring Return, Type 7 Solenoid 120VAC, Vented Ball, Low Temperature

Overview

316 full port

1” 300 lb ball valve

Complete vented balls upstream

Complete with spring return pneumatic actuators

Sized at 80 psi

C/W TSM Stem Extension

Explosion proof solenoid as per spec CSA certified

Low Temp Seals & Lubricant

Custom 4" Stem Extension
FD9-F3-200/2R5S-BX-V
FD9-F3-200/2R5S-BX-V
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 2" x 300# Flange, RTFE, 2R200SR Pneumatic Actuator, Spring Return, Type 7 Solenoid 120VAC, Vented Ball

Overview

316 full port

2” 300 lb ball valve

Complete vented balls upstream

Complete with spring return pneumatic actuators

Sized at 80 psi

C/W TSM Stem Extension

Explosion proof solenoid as per spec CSA certified
FD9-F3-200/2R5S-BX-V-LT
FD9-F3-200/2R5S-BX-V-LT
A-T CONTROLS Series FD9 Automated Ball Valve, Firesafe, 2-Piece Full Port, 316 SST, 2" x 300# Flange, RTFE, 2R200SR Pneumatic Actuator, Spring Return, Type 7 Solenoid 120VAC, Vented Ball, Low Temperature

Overview

316 full port

2” 300 lb ball valve

Complete vented balls upstream

Complete with spring return pneumatic actuators

Sized at 80 psi

C/W TSM Stem Extension

Explosion proof solenoid as per spec CSA certified

Low Temp Seals & Lubricant
FVD9-3X-075/WEA2-XX-9
FVD9-3X-075/WEA2-XX-9
A-T CONTROLS FD9-F3 Series Valve, 300# Flange, 3/4", Electric Actuator, RTFE
VD9-F3-150SXX3/FSEM1150/14"
VD9-F3-150SXX3/FSEM1150/14"
A-T CONTROLS Series FD9 30°V-Ball Control Port Valve, 300# Flange, 1.5", Electric, w 50/50 Seats
1 - 25 of 25 Part Numbers
