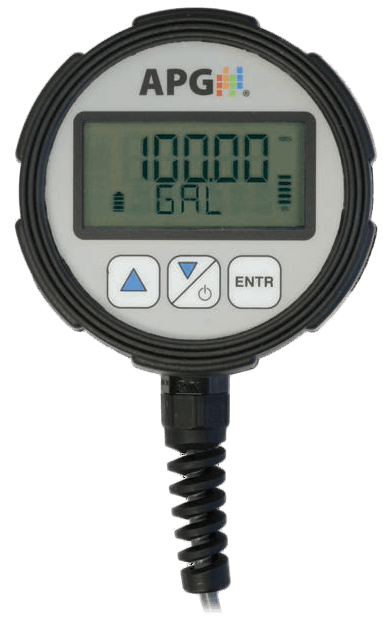

PG7 Digital Pressure Gauge

Brand: Automation Products Group Inc. (APG)
The PG7 Digital Pressure Gauge is built for accurate pressure measurements in indoor/outdoor environments. With its ease of operation, high accuracy, and many standard features, the PG7 is perfect for a variety of applications.
Features
  • Large, full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Environmentally sealed housing; IP67
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
  • Available RS-485/Modbus RTU output
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 18 of 18 Part Numbers
PG7-100PSIG-F1-L0-E0-C0-P0-N0
PG7-100PSIG-F1-L0-E0-C0-P0-N0
APG PG7 Series Digital Pressure Gauge, 0-100 psi (Gauge), Rear Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 100 psi Gauge
  • Accuracy: ±0.25 % FSO
  • Relays: No Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Rear
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-10K-PSISF0L0-E0C0P0N0
PG7-10K-PSISF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-10,000 psi (Sealed), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview


PG7 DIGITAL PRESSURE GAUGE



*RANGE: 10000



*UNIT OF MEASURE: PSIS



*PORT: F0 = BOTTOM



*OPERATION: L0 = 2 AA BATTERIES



*ELECTRICAL CONNECTION: E0 = NO CONNECTOR RELAYS: C0 = NO RELAYS



*PROCESS CONNECTION: P0 = 1/4 INCH NPTM



*ACCURACY: N0 = +/- 0.25%



*LABEL: B0 = APG
PG7-10K-PSISF1430L0E0C0P0N0
PG7-10K-PSISF1430L0E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-10,000 psi (Sealed), Remote mV/V Port with 6-Pin Connector (30' Cable), (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 10,000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Remote mV/V 6-pin Connector at Sensor, 30ft Cable
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-10K-PSISF7L0-E0C0P0N0
PG7-10K-PSISF7L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-10,000 psi (Sealed), Bottom Port with Rubber Boot Installed, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 10,000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom with Rubber Boot
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-10K-PSIS-F7-L0-E0-C0-P0-N0-H1
PG7-10K-PSIS-F7-L0-E0-C0-P0-N0-H1
APG PG7 Series Digital Pressure Gauge, 0-10,000 psi (Sealed), Bottom Port with Rubber Boot Installed, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%, Backlight

Overview

  • 10K - Pressure Range: 0-10,000 psi
  • PSIS - Pressure Type:  Sealed Gauge (≥ 500 psi)
  • F0 - Port: Bottom
  • L0-E0 - Operation: (2) AA Batteries; No Output
  • C0 - Relays: No solid-state relays
  • P0 - Process Connection: 1/4" - 18 NPTM
  • N0 - Accuracy: ±0.25%
  • H1 - Backlight
  • CE Approved
  • IP67
PG7-10K-PSISF7L0-E0C0P0N1
PG7-10K-PSISF7L0-E0C0P0N1
APG PG7 Series Digital Pressure Gauge, 0-10,000 psi (Sealed), Bottom Port with Rubber Boot Installed, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25% (NIST Certification)

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 10,000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom with Rubber Boot
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
  • NIST
PG7-150-PSIGF0L0-E0C0P0N0
PG7-150-PSIGF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-150 psi (Gauge), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 150 psi Gauge
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-15K-PSIGF0L0-E0C0P30N0
PG7-15K-PSIGF0L0-E0C0P30N0
APG PG7 Series Digital Pressure Gauge, 0-15,000 psi (Gauge), Bottom Port, (2) AA Batteries (No Output), No Relays, Sno-Trik Autoclave Fitting, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 15000 psi Gauge
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: Sno-Trik Autoclave
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-1K-PSIS-F1-L0-E0C0P7N0
PG7-1K-PSIS-F1-L0-E0C0P7N0
APG PG7 Series Digital Pressure Gauge, 0-1,000 psi (Sealed), Rear Port, (2) AA Batteries (No Output), No Relays, 7/16"-20SAE Male, ±0.25%

Overview

  • L0-E0 Operation: (2) AA Batteries
  • Pressure Range: 0 to 1,000psi Sealed Gauge
  • N0 Accuracy: ±0.25 %
  • C0 Relays: No Solid-State Relays
  • P7 Process Fitting: 7/16 - 20 SAE Male
  • F1 Pressure Port: Rear
  • IP67
PG7-2K-PSIS-F0-L0-E0-C0-P0-N0-H0
PG7-2K-PSIS-F0-L0-E0-C0-P0-N0-H0
APG PG7 Series Digital Pressure Gauge, 0-2,000 psi (Sealed), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 2000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-2K-PSIS-F0-L1-E1-C0-P0-N0-H0-BO
PG7-2K-PSIS-F0-L1-E1-C0-P0-N0-H0-BO
APG PG7 Series Digital Pressure Gauge, 0-2,000 psi (Sealed), Bottom Port, 4-20 mA (Loop-Powered) Output, No Relays, 1/4" MNPT, ±0.25%

Overview

PG7 Digital Pressure Gauge
  • 2000: Range
  • PSIS: Unit of Measure
  • F0: Port - Bottom
  • L1: Operation - 4/20mA Output
  • EI: Electrical Connection - 6 Pin
  • C0: Relays - No Relays
  • P0: Process Connection - 1/4" MNPT
  • N0: Accuracy - ±0.25%
PG7-2K-PSIS-F1-L0-E0-C0-P0-N0-H0
PG7-2K-PSIS-F1-L0-E0-C0-P0-N0-H0
APG PG7 Series Digital Pressure Gauge, 0-2,000 psi (Sealed), Rear Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 2000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Rear
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-30-PSIVF0L7-E0C0P0N0
PG7-30-PSIVF0L7-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-30 psi (Vacuum), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

Operation: (2) AA Batteries
  • Pressure Range: 0 to 30 psi
  • Pressure Type: Vacuum
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 Male NPT
  • Pressure Port: Bottom
PG7-3K-PSISF0L0-E0C0P0N0
PG7-3K-PSISF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-3,000 psi (Sealed), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 3000psi Sealed
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-3K-PSISF0L5-E1C0P0N1
PG7-3K-PSISF0L5-E1C0P0N1
APG PG7 Series Digital Pressure Gauge, 0-3,000 psi (Sealed), Bottom Port, RS-485 (External Power, Logging Software), No Relays, 1/4" MNPT, ±0.25% (NIST Certification)

Overview

  • Operation: RS-485 External Power with Logging Software
  • Pressure Range: 0 to 3000psi Sealed
  • Accuracy: ±0.25 % FSO, NIST Certificate
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved, NIST
  • IP67
PG7-500-PSIAF0L0-E0C0P0N0
PG7-500-PSIAF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-500 psi (Absolute), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 500 psi Absolute
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-5-PSIAF0L0-E0C0P0N0
PG7-5-PSIAF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-5 psi (Absolute), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 5 psi Absolute
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
PG7-5-PSIGF0L0-E0C0P0N0
PG7-5-PSIGF0L0-E0C0P0N0
APG PG7 Series Digital Pressure Gauge, 0-5 psi (Gauge), Bottom Port, (2) AA Batteries (No Output), No Relays, 1/4" MNPT, ±0.25%

Overview

  • Operation: (2) AA Batteries
  • Pressure Range: 0 to 5 psi Gauge
  • Accuracy: ±0.25 % FSO
  • Relays: No Solid-State Relays
  • Process Fitting: 1/4"-18 NPT Male
  • Pressure Port: Bottom
  • Temperature Range:
    • Compensated: -7°C to +45°C (+20°F to +130°F)
    • Storage: -40°C to +71°C (-40°F to +160°F)
    • Operating: -18°C to +71°C (0°F to +160°F)

  • CE Approved
  • IP67
1 - 18 of 18 Part Numbers

PG7

Pressure Range

Pressure Type

Port

Output

Relay

Process Connection

Accuracy

Backlight

Specifications

Accuracy

  • ± 0.1% of Span
  • ± 0.25% of Span

Approvals & Certifications

  • CE

BSP Connection

  • 1/4" BSP Male

Compensated Temperature

  • -7° to 54° C (20° to 130° F)

Cone & Thread Connection

  • High Pressure SnoTrik M-250C Autoclave Male

Display

  • 5-Digit LCD

Enclosure, Body Material

  • Injection Molded Base (EMI-X)

Environmental Protection

  • IP67

Mounting

  • Bottom Mounting
  • Bottom Mounting with Rubber Boot
  • Rear Mounting

NACE & NIST

  • NIST Certification (Select Ranges)

NPT Connection

  • 1/4" NPT Male
  • 1/8" NPT Female

Operating Temperature

  • -18° to 71° C (0° to 160° F)

Output

  • 0-2 Vdc
  • 0-5 Vdc
  • 4-20 mA

Pressure Range

  • bar: 0 to 68.9
  • kPa: 0 to 6,894
  • psi: 0 to 10,000

Pressure Type

  • Absolute
  • Gauge
  • Sealed Gauge

Relay Operation

  • 2 Solid-State Relays with Visual Indication

SAE Connection

  • 7/16"-20 SAE Male

Size

  • Face: 3.25"

Storage Temperature

  • -40° to 71° C (-40° to 160° F)

Supply Voltage

  • 3.6V Lithium
  • 9-28 Vdc
  • 9V Lithium Battery
  • Two AA Alkaline Batteries

Wetted Materials

  • 316L Stainless Steel: up to 5000 psi
  • 630 Stainless Steel: 5000 psi & above
The PG7 Digital Pressure Gauge is built for accurate pressure measurements in indoor/outdoor environments. With its ease of operation, high accuracy, and many standard features, the PG7 is perfect for a variety of applications.
Features
  • Large, full 5-digit display with 0.4 inch characters
  • Available ranges from vacuum up to 10,000 psi
  • Environmentally sealed housing; IP67
  • Tare, Peak Hold, and Max/Min functions standard
  • ±0.25% accuracy of full scale
  • User selectable units of measure (PSI, kPa, mmHg, cmHg, mbar, bar, inH2O, ftH2O, kg/cm2)
  • Available RS-485/Modbus RTU output
