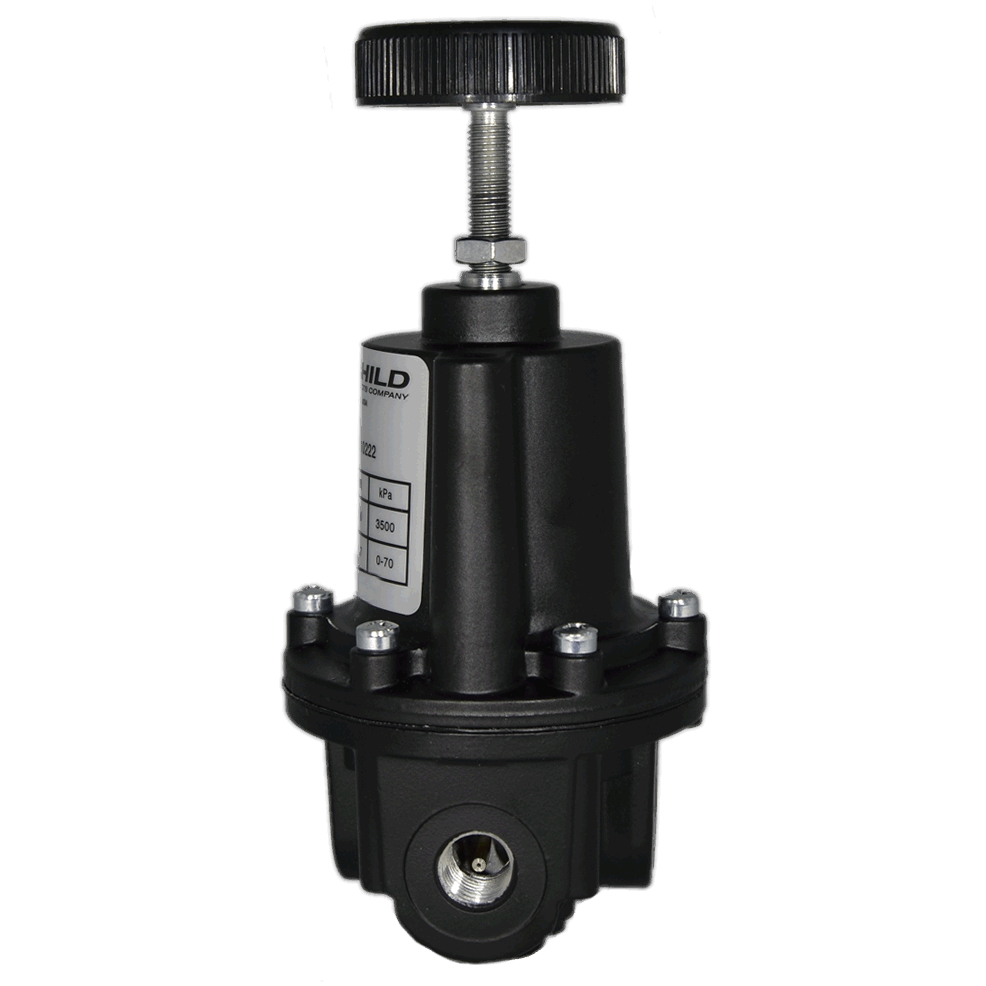

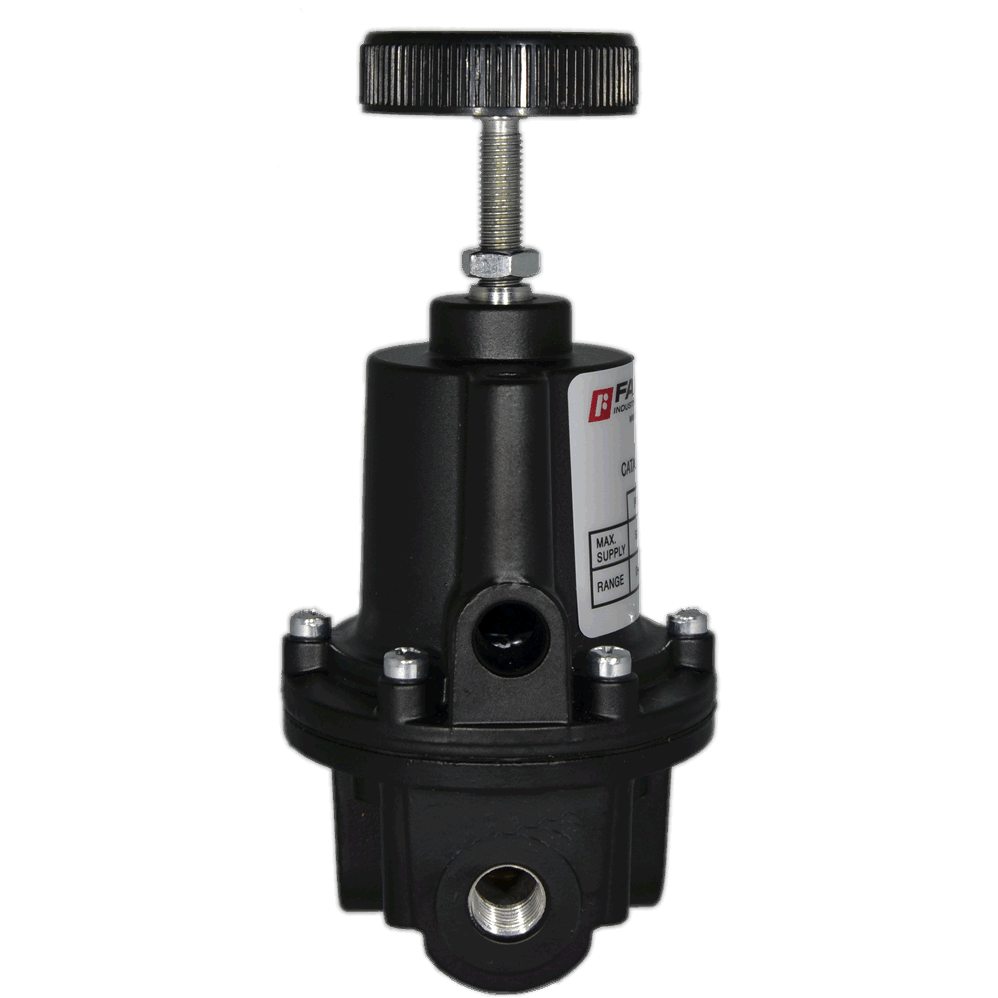

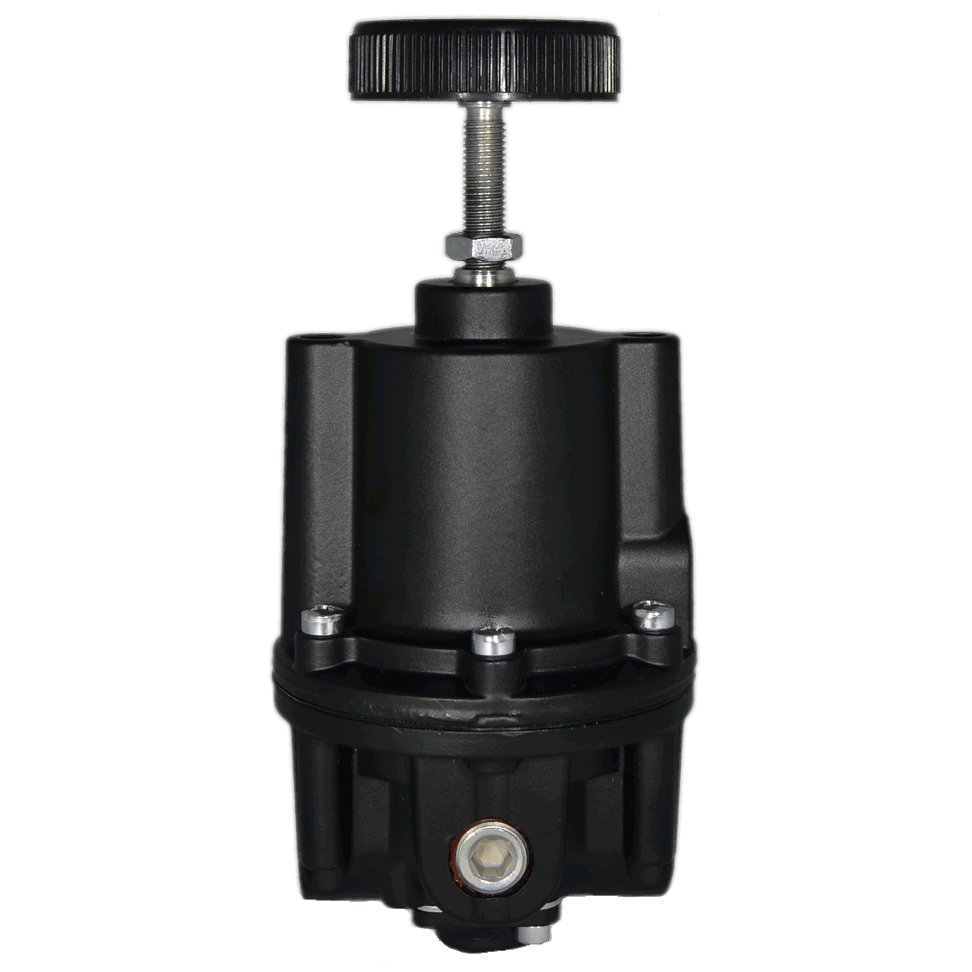

Images are representations only.

Model 10BP Precision Back Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.

The Model 10BP features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 10BP pneumatic regulator is a high capacity regulator that provides greater accuracy than relief valves over a narrow pressure range, making it an excellent choice for a wide range of precision applications.

The Fairchild Model 10BP will handle a 500 psi, 34 BAR, maximum system pressure and offers nine (9) setpoint pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Fairchild Model 10BP back pressure regulator offers 40 SCFM, 68 m3/hr flow capacity.
Features
  • Control sensitivity of 1/8" water column
  • High Flow Capacity
  • Separate Control Chamber
  • Aspirator Tube isolate the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 28 of 28 Part Numbers
10202BP
10202BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • System Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10203BPJ
10203BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Options:
    • Low Bleed
    • Panel Mount
    • Fluorocarbon Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10204BPJ
10204BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-20 psig, 0-150 kPa, 1/2" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/2" NPT
  • Options:
    • Low Bleed
    • Panel Mount
    • Fluorocarbon Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10212BP
10212BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • System Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10212BPJ
10212BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
    • Fluorocarbon Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10214BPJ
10214BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-2 psig, 0-15 kPa, 1/2" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Fluorocarbon (Viton)

10222BP
10222BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10222BPE
10222BPE
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Tapped Exhaust

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • System Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10232BHP
10232BHP
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, Low Bleed, 1/4" BSPP (Parallel), Panel Mount

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

  • Options:
    • ​Low Bleed
    • BSPP (Parallel)
    • Panel Mount

10232BP
10232BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

  • Options:
    • ​Low Bleed
    • Panel Mount

10233BPJ
10233BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0.5-30 psig, 3-200 kPa, 3/8" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Options:
    • Low Bleed
    • Panel Mount
    • Fluorocarbon Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10242BP
10242BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT

Overview

  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle:Nitrile on Dacron

10242BPA
10242BPA
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT, Silicone Elastomers

Overview

  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers:Silicone

10242BPJY
10242BPJY
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers, No Yellow Metals

Overview

  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel
    • Elastomers: Fluorocarbon (Viton)

10243BP
10243BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 3/8" NPT

Overview

  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle:Nitrile on Dacron

10243BPJ
10243BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 1-60 psig, 10-400 kPa, 3/8" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 1-60 psig, 0.1-4 bar, 10-400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers:Viton (Fluorocarbon)

10262BHJP
10262BHJP
FAIRCHILD Model 10 Pneumatic Precision Regulator, 2-150 psig, 15-1000 kPa, 1/4" BSPP (Parallel), Low Bleed, Fluorocarbon (Viton) Elastomers, Panel Mount

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" BSPP (Parallel)
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Fluorocarbon (Viton)

10262BP
10262BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10262BPJ
10262BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 2-150 psig, 0.15-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Bleed
    • Panel Mount
    • Fluorocarbon Elastomers

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10263BP
10263BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel , Brass
    • Diaphragms: Buna N on Dacron

10263BPJ
10263BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 3/8" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel , Brass
    • Diaphragms: Fluorocarbon (Viton)

10264BP
10264BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel , Brass
    • Nozzle: Nitrile on Dacron

10264BPJ
10264BPJ
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel , Brass
    • Nozzle: Fluorocarbon (Viton)

10264BPJY
10264BPJY
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 2-150 psig, 15-1000 kPa, 1/2" NPT, Fluorocarbon (Viton) Elastomers, No Yellow Metals

Overview

  • Set Point Range: 2-150 psig, 0.1-10 bar, 15-1000 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel
    • Elastomers: Fluorocarbon (Viton)

10273B
10273B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 3-200 psig, 20-1400 kPa, 3/8" NPT, Low Bleed
10273BP
10273BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 3-200 psig, 20-1400 kPa, 3/8" NPT

Overview

  • Set Point Range: 3-200 psig, 0.2-14 bar, 20-1400 kPa
  • Supply Pressure (Maximum): 300 psig, 21 bar, 2100 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

10282BP
10282BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 5-300 psig, 35-2100 kPa, 1/4" NPT

Overview

  • Set Point Range: 5-300 psig, 0.3-21 bar, 35-2100 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Nozzle: Nitrile on Dacron

  • Flow Capacity: 40 SCFM @ 100 psig system pressure
  • Temperature Rating: -40 degC to +93 degC
10292BP
10292BP
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 5-400 psig, 35-2800 kPa, 1/4" NPT

Overview

  • Set Point Range: 5-400 psig, 0.35-28 bar, 35-2800 kPa
  • Supply Pressure (Maximum): 500 psig
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

1 - 28 of 28 Part Numbers

Model 10BP

Port Size

Port Thread

Elastomers

  • view details

Actuation Adjustment Means

Specifications

Actuator Type

  • Knob Adjust
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • FluoroCarbon (Viton)
  • Nitrile on Dacron
  • Silicone

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Flow Capacity

  • 40 scfm
  • 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 68 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • None

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • None

Pressure Range

  • bar: 0 to 1.36
  • bar: 0 to 28
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • bar: 0.204 to 13.60
  • bar: 0.34 to 27.20
  • kPa: 0 to 137
  • kPa: 0 to 2,800
  • kPa: 13.6 to 1,020
  • kPa: 20.4 to 1,360
  • kPa: 3.4 to 204
  • kPa: 34 to 2,720
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0 to 20
  • psig: 0 to 400
  • psig: 1 to 60
  • psig: 2 to 150
  • psig: 3 to 200
  • psig: 5 to 400

Relief

  • Relieving

Sensitivity

  • < 1/8" WC (0.32 cm)

Supply Pressure - Maximum

  • bar: 35
  • kPa: 3,500
  • psig: 500

Supply Pressure Effect

  • less than 0.007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.7)
  • less than psig: 0.1 (bar: 0.007, kPa: 0.7)
  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
The Rotork Fairchild Model 10BP Regulator is an excellent choice for applications which require high precision control of back pressures and relief pressures. The Model 10BP uses a force balance principle to open the relief valve and vent the system pressure when the set point is exceeded.

The Model 10BP features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Model 10BP pneumatic regulator is a high capacity regulator that provides greater accuracy than relief valves over a narrow pressure range, making it an excellent choice for a wide range of precision applications.

The Fairchild Model 10BP will handle a 500 psi, 34 BAR, maximum system pressure and offers nine (9) setpoint pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Fairchild Model 10BP back pressure regulator offers 40 SCFM, 68 m3/hr flow capacity.
Features
  • Control sensitivity of 1/8" water column
  • High Flow Capacity
  • Separate Control Chamber
  • Aspirator Tube isolate the diaphragm from the main flow
  • Unit construction
  • Mounting Bracket available
