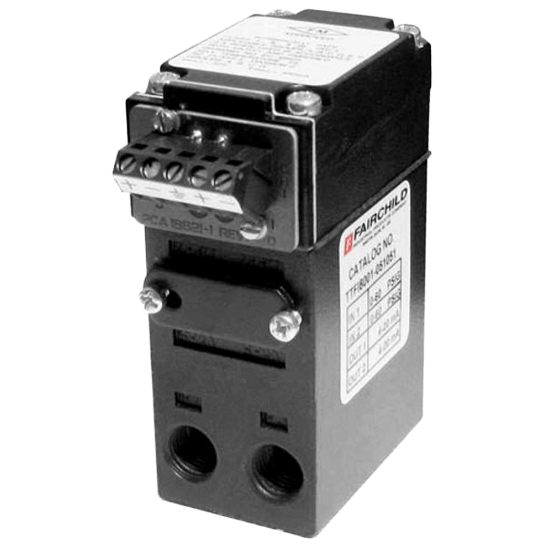

Model T8000 P/I Pressure Transducer

Brand: Fairchild Industrial Products
The Rotork Fairchild T8000 P/I Transducer Series is a miniature two wire pressure device that converts a pneumatic input signal to a linearly proportional output current. It is field reversible and offers output choices of 4-20 mA or 10-50 mA.

The T8000 Series is designed for precision applications providing maximum versatility. The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations. Servicing or calibration is quick and easy. The Zero and Span adjustments are easily accessible from the front of the unit.

The T8000 Series may be configured as a Single or Dual Channel Unit. The Dual Channel Unit consists of two PC Boards that are enclosed within the same housing and function independently of each other.

This unit may be offered in any one of the seven standard input pressure signals or in any combination.
Features
  • Field reversible feature
  • RFI/EMI Protection
  • Outputs of 4-20 mA or 10-50 mA
  • Seven input signal ranges
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and rear
  • Various mounting and connection configurations
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 19 of 19 Part Numbers
TACI8001-00-1-00-0
TACI8001-00-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 0-5 psig/4-20 mA

Overview

  • Input Range: 0-5 psig, 0-0.3 bar, 0-35 kPa
  • Electrical Connections: 1/2" NPT Conduit Fitting with Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TACI8001-01-1-00-0
TACI8001-01-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 3-15 psig/4-20 mA

Overview

  • Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Electrical Connections: 1/2" NPT Conduit Fitting with Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TACI8001-04-1-00-0
TACI8001-04-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 0-30 psig/4-20 mA

Overview

  • Input Range: 0-30 psig, 0-2 bar, 0-200 kPa
  • Electrical Connections: 1/2" NPT Conduit Fitting with Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TACI8001-05-1-00-0
TACI8001-05-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 0-60 psig/4-20 mA

Overview

  • Input Range: 0-60 psig, 0-4 bar, 0-400 kPa
  • Electrical Connections: 1/2" NPT Conduit Fitting with Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Stainless Steel, Brass, Zinc Plated Steel
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TACI8001-05-1-06-1
TACI8001-05-1-06-1
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 0-60 psig/4-20 mA, 0-120 psig/4-20 mA

Overview

  • Input Range:
    • Channel 1: 0-60 psig, 0-4 bar, 0-400 kPa
    • Channel 2: 0-120 psig, 0-8 bar, 0-800 kPa
  • Electrical Connections: 1/2" NPT Conduit Fitting with Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TCX8001-04-1-00-0
TCX8001-04-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, CSA, Explosion Proof, 0-30 psig/4-20 mA

Overview

  • Pneumatic Input Range: 0-30 psig
  • Underwriting Group: Canadian Standards
  • Approval Class:
    • Explosion-Proof NEMA 4X (IP65)
    • Intrinsically Safe (Includes Division 2 Approval)

  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials

TCXI8001-01-1-00-0
TCXI8001-01-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, CSA, Explosion-Proof, 3-15 psig/4-20 mA

Overview

  • Pneumatic Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Underwriting Group: Canadian Standards
  • Approval Class:
    • Explosion-Proof NEMA 4X (IP65)
    • Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TCXI8001-03-1-00-0
TCXI8001-03-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, CSA, Explosion-Proof, 6-30 psig/4-20 mA

Overview

  • Pneumatic Input Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
  • Underwriting Group: Canadian Standards
  • Approval Class:
    • Explosion-Proof NEMA 4X (IP65)
    • Intrinsically Safe (Includes Division 2 Approval)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TD8001-06-1-00-0
TD8001-06-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, DIN 43650, 0-120 psig/4-20 mA

Overview

  • Input Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Electrical Connections: DIN43650 Connection
  • Underwriting Group: None
  • Approval Class: None
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials

TDCI8001-06-1-00-0
TDCI8001-06-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, DIN 43650, CSA, Intrinsically Safe, 0-120 psig/4-20 mA

Overview

  • Input Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Electrical Connections: DIN43650 Connection
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials

TFX8001-01-1-00-0
TFX8001-01-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, FM, Explosion-Proof, 3-15 psig/4-20 mA

Overview

  • Pneumatic Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Electrical Connection: Explosion Proof
  • Underwriting Group: Factory Mutual
  • Approval Class: Explosion-Proof NEMA 4X (IP65)
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials

TFXI8001-01-1-00-0
TFXI8001-01-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, FM, Explosion-Proof, 3-15 psig/4-20 mA

Overview

  • Pneumatic Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Electrical Connection: Explosion Proof
  • Underwriting Group: Factory Mutual
  • Approval Class: Explosion-Proof NEMA 4X (IP65) , Intrinsically Safe
  • Temperature Range: -40°F to +176°F, -40°C to +80°C
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials

TT8001-041000
TT8001-041000
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, 0-30 psig/4-20 mA
TTCI8001-01-1-00-0
TTCI8001-01-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 3-15 psig/4-20 mA

Overview

  • Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TTCI8001-01-1-01-1
TTCI8001-01-1-01-1
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 3-15 psig/4-20 mA, 3-15 psig/4-20 mA

Overview

  • Input Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output Channel 1: 4-20 mA
  • Output Channel 2: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TTCI8001-03-1-00-0
TTCI8001-03-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 6-30 psig/4-20 mA

Overview

  • Input Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TTCI8001-04-1-00-0
TTCI8001-04-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 0-30 psig/4-20 mA

Overview

  • Input Range: 0-30 psig, 0-2 bar, 0-200 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TTCI8001-05-1-00-0
TTCI8001-05-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 0-60 psig/4-20 mA

Overview


  • Input Range: 0-60 psig, 0-4 bar, 0-400 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
TTCI8001-06-1-00-0
TTCI8001-06-1-00-0
FAIRCHILD Model T8000 Miniature 2-Wire P/I Pressure Transducer, Terminal Block, CSA, Intrinsically Safe, 0-120 psig/4-20 mA

Overview

  • Input Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Electrical Connections: Terminal Block
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe (Includes Division 2 Approval)
  • Output: 4-20 mA
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Stainless Steel, Brass
    • Wetted Materials: Aluminum, Glass, Ceramic, Delrin, Nitrile, Silicone, RTV, Nickel
    • Material Compatibility: Liquids & gases compatible with wetted materials
1 - 19 of 19 Part Numbers

Model T8000

Electrical Connection

Underwriting Group

Approval Class

Pneumatic Input Channel 1

Current Output Channel 1

Pneumatic Input Channel 2

Current Output Channel 2

Port Thread

Specifications

Approvals & Certifications

  • CSA
  • FM

Burst Pressure

  • 3 times Rated Input or psig: 200 (bar: 15, kPa: 1,500), whichever is Less

Calibration

  • Pressure: 2 times Rated Input

Conduit Connection

  • 1/2" NPT

Electrical Connectors

  • DIN 43650
  • Rack Mount
  • Terminal Block

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • IP65
  • NEMA 4X

Hysteresis

  • less than 0.1% of Full Scale

Independent Linearity

  • +0.15% of Full Scale

Load Limit

  • Ohms: 1900 at 20 mA
  • Ohms: 360 at 50 mA

Output

  • 10-50 mA
  • 4-20 mA

Output Span - Maximum

  • For psig: 0 to 120 Range: psig: 200 (bar: 14, kPa: 1,400) Standard Range
  • For psig: 0 to 30 Range: psig: 60 (bar: 4, kPa: 400) Standard Range
  • For psig: 0 to 5 Range: psig: 10 (bar: 0.7, kPa: 70) Standard Range
  • For psig: 0 to 60 Range: psig: 100 (bar: 7, kPa: 700) Standard Range
  • For psig: 3 to 15 Range: psig: 30 (bar: 2, kPa: 200) Standard Range
  • For psig: 3 to 27 Range: psig: 60 (bar: 4, kPa: 400) Standard Range
  • For psig: 6 to 30 Range: psig: 60 (bar: 4, kPa: 400) Standard Range

Output Span - Minimum

  • For psig: 0 to 30 Range: psig: 23 (bar: 1.45, kPa: 145) Standard Range
  • For psig: 0 to 5 Range: psig: 4 (bar: 0.28, kPa: 28) Standard Range
  • For psig: 0 to 60 Range: psig: 38 (bar: 2.6, kPa: 260) Standard Range
  • For psig: 1 to 120 Range: psig: 75 (bar: 5, kPa: 500) Standard Range
  • For psig: 3 to 15 Range: psig: 12 (bar: 0.8, kPa: 80) Standard Range
  • For psig: 3 to 27 Range: psig: 23 (bar: 1.45, kPa: 145) Standard Range
  • For psig: 6 to 30 Range: psig: 23 (bar: 1.45, kPa: 145) Standard Range

Pneumatic Input Channel 1

  • psig: 0 to 120
  • psig: 0 to 30
  • psig: 0 to 5
  • psig: 0 to 60
  • psig: 3 to 15
  • psig: 3 to 27
  • psig: 6 to 30

Resolution

  • Infinite

Response Time

  • < 10 milliseconds from 10 to 90% Input

Reverse Polarity Protection

  • Damping: 7 seconds 10 to 90% of Full Scale Output Jumper Selectable
  • Output Ripple: less than 5 mV peak-to-peak

RFI/EMI Effect

  • < 0.1% of Span at 10 V/m Class 2 Band ABC (20-1,000 MHz) Per SAMA PMC 33.1 1978 & < 0.5% of Span at 10 V/m Level 3, 27-500 MHz Band Per IEC Standard 801-3 1984 (wire in Conduit). EMC Directive 89 / 336 EEC European Norms EN 50081-2 & EN 50082-2

Span & Zero Effect

  • -25 to 200% & -66 to 125% of Full Scale Output

Stability

  • Compensated Range: 0° to 50° C (32° to 122° F)
  • Temperature Compensation (Drift): less than 0.25% of Full Scale/30 Days
  • Temperature Compensation (Span): ± 0.5% of Full Scale, 0° to 50° C (32 ° to 122° F)
  • Temperature Compensation (Zero): ± 1% of Full Scale, 0° to 50° C (32° to 122° F)

Supply Voltage

  • 12-30 Vdc for 4-20 mA
  • 12-50 Vdc for 10-50 mA

Trim Material

  • Brass
  • Stainless Steel
  • Zinc-Plated Steel

Wetted Materials

  • Aluminum
  • Ceramic
  • Delrin®
  • Glass
  • Nickel
  • Nitrile
  • Room Temperature Vulcanizing
  • Silicone
The Rotork Fairchild T8000 P/I Transducer Series is a miniature two wire pressure device that converts a pneumatic input signal to a linearly proportional output current. It is field reversible and offers output choices of 4-20 mA or 10-50 mA.

The T8000 Series is designed for precision applications providing maximum versatility. The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations. Servicing or calibration is quick and easy. The Zero and Span adjustments are easily accessible from the front of the unit.

The T8000 Series may be configured as a Single or Dual Channel Unit. The Dual Channel Unit consists of two PC Boards that are enclosed within the same housing and function independently of each other.

This unit may be offered in any one of the seven standard input pressure signals or in any combination.
Features
  • Field reversible feature
  • RFI/EMI Protection
  • Outputs of 4-20 mA or 10-50 mA
  • Seven input signal ranges
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and rear
  • Various mounting and connection configurations
