WE/XE/SE/FE Series Electric Actuator

Brand: A-T Controls, Inc.

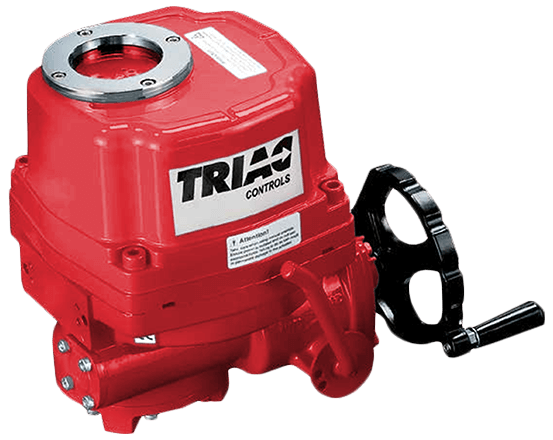

WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 30 of 30 Part Numbers
4-20 mA Position Transmitter
4-20 mA Position Transmitter
A-T CONTROLS 4-20mA Position Transmitter; POT-102, MKT-175, XMA-107
CAST-IRON-TEE-8"-125
CAST-IRON-TEE-8"-125
A-T CONTROLS Flanged Flat Face Cast Iron Tee, 8" , Class 125
TMC3-115
TMC3-115
A-T CONTROLS Modulating card for 115VAC Electric Actuators
WE-10500XXYL
WE-10500XXYL
A-T CONTROLS Series WE Electric Actuator, 10500 In-Lbs, 115 VAC, 180°, Low Temperature
WE-1350
WE-1350
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 110VAC
WE-1350A
WE-1350A
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 24VDC/24VAC

Overview

  • WE:  Weather Proof, IP67, TYPE 4, 4X, 6
    • Control: (2) Position Control (Open / Close)

  • 1350: Actuator Size - 1350 In-Lbs
  • A: Voltage: 24V AC/DC
    • CycleTime: 21 Seconds
    • Motor: 40 Watts

WE-1350CRCM/24VDC
WE-1350CRCM/24VDC
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 24VDC, RCM-101

Overview

  • WE:  Weather Proof, NEMA 4 & 6
    • Compartment Heater & Thermostat
    • (2) Auxillary Limit Switches with 4 Independent CAMS
    • (2) Torque Switches
    • (2) 3/4" NPT Conduit Connections
    • F07/F10 ISO Mounting Pad
    • 19MM Star Output Drive

  • 1350: Actuator Size - 1350 In-Lbs, 21 Second Operation
  • C: Motor24 VDC
  • RCM: RCM-101 On-Off Control

Diecast Anodized Aluminum Polyester Coated Construction

Class F Extended Duty Fan Motor

Manual Override
WE-1350P
WE-1350P
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 1350 In-Lbs, 110VAC, 10K Ohm Potentiometer

Overview

  • Electric Actuator: On/Off
  • Torque: 1350 In-Lbs
  • Operating Time: 12 Seconds
  • Voltage: AC85-265V/1PH, 24 VDC
  • Indication: Manual Position and LED Open/Close
  • Options: 10k Ohm Petentiometer
WE-1350-XXL
WE-1350-XXL
A-T CONTROLS Series WE Electric Actuator, 1350 In-Lbs, Low Temperature
WE-2640A
WE-2640A
A-T CONTROLS Series WE Electric Actuator, 2640In-Lbs, 24VAC/1PH
WE-2640CRCM/24VDC
WE-2640CRCM/24VDC
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 2120 In-Lbs, 24VDC, RCM-101

Overview

  • WE:  Weather Proof, NEMA 4 & 6
    • Compartment Heater & Thermostat
    • (2) Auxillary Limit Switches with 4 Independent CAMS
    • (2) Torque Switches
    • (2) 3/4" NPT Conduit Connections
    • F07/F10 ISO Mounting Pad
    • 19MM Star Output Drive

  • 2640: Actuator Size - 2640 In-Lbs, 26 Second Operation
  • C: Motor24 VDC
  • RCM: RCM-101 On-Off Control

Diecast Anodized Aluminum Polyester Coated Construction

Class F Extended Duty Fan Motor

Manual Override
WE-4400
WE-4400
A-T CONTROLS Series WE Electric Actuator, 4400 In-Lbs, 110 VAC / 1 Phase
WE-4400H
WE-4400H
A-T CONTROLS Series WE Electric Actuator, 4400 In-Lbs, 440VAC/3PH
WE-5200H
WE-5200H
A-T CONTROLS Series WE Electric Actuator, 5200 In-Lbs, 440VAC/3PH
WE-690A
WE-690A
A-T CONTROLS WE Series Electric Actuator, Weatherproof, On/Off, 620 In-Lbs, 24VDC/24VAC

Overview

  • WE:  Weather Proof, CSA TYPE 4, 4X, IP67
    • Control: (2) Position Control (Open / Close)

  • 6900: Actuator Size - 690 In-Lbs
  • A: Voltage: 24V AC/DC
    • CycleTime: 13 Seconds
    • Motor: 15 Watts

WE-690XFY
WE-690XFY
A-T CONTROLS Series WE Electric Actuator, 690 In-Lbs, 115 VAC/1PH
WE-690-XXL
WE-690-XXL
A-T CONTROLS Series WE Electric Actuator, 690 In-Lbs, Low Temperature
WEM-2640
WEM-2640
A-T CONTROLS Series WE Electric Actuator, 2640In-Lbs, TMC3 Modulating Control, 115VAC/1PH, 4-20mA
WEM-500
WEM-500
A-T CONTROLS WE Series Electric Actuator, Weatherproof, Modulating, 500 In-Lbs, 110VAC

Overview

Enclosure:                           Weatherproof enclosure IP67, Type 4, 4X, CSA General Purpose

Power Supply:                     110/220V AC 1PH, 50/60Hz, ± 10%

Duty cycle:                           70%

Motor:                                    Class F Reversible motor

Limit switches:                   Open/Close, SPDT, 5A 125 VAC, 3A 250 VAC, 0.4A125 VDC, 0.2A 250 VDC

Add’l limit switches:          Open/Close, SPDT, 5A 125 VAC, 3A 250 VAC, 0.4A 125 VDC, 0.2A 250 VDC

Space heater:                     2W (110/220V AC) Anti-condensation

Manual override:                Drive Nut (hexagon design)

Cable conduit:                     Two 1/2” NPT

Movement angle:               320º ±10º

Ambient temperature:      -4ºF - 158ºF

External coating:                Polyester powder coating

WEM-690
WEM-690
A-T CONTROLS WE Series Electric Actuator, Weatherproof, Modulating, 690 In-Lbs, 110VAC

Overview

  • Electric Actuator: Modulating
  • Torque: 690 In-Lbs
  • Operating Time: 20 Seconds
  • Voltage: 115VAC/1PH
  • Indication: Continuous Position Indicator
  • CSA Approved:  General Purpose Locations
XE-1700
XE-1700
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 110VAC

Overview

  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67
    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 1700: 1700 In-Lbs Torque
  • (Blank): 115VAC/1PH Motor
XE-1700C
XE-1700C
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 24VDC

Overview

  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67
    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 1700: 1700 In-Lbs Torque
  • C: 24VDC Motor
XE-1700C2
XE-1700C2
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 1700 In-Lbs, 24VDC

Overview

  • XE: Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67
    • Electric Actuator: Two-Position Control - Open/Close
    • Temperature Range: -4°F to +158°F (-20°C to +70°C)
    • Indication: Manual Position and LED Open/Close

  • 1700: 1700 In-Lbs Torque
  • C2: 24VDC Motor - 3 wire On/Off
XE-2640
XE-2640
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 2640 In-Lbs, 110VAC

Overview

  • Electric Actuator: Two-Position Control - Open/Close
  • Torque: 2640 In-Lbs
  • Operating Time: 26 Seconds
  • Motor Voltage: 115VAC/1PH
  • Temperature Range: -4°F to +158°F (-20°C to +70°C)
  • Indication: Manual Position and LED Open/Close
  • Explosion Proof ATEX Eexd II B&C T4
XE-2640A
XE-2640A
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 90°, 2640 In-Lbs. 24V AC/DC
XE-2640AXT
XE-2640AXT
A-T CONTROLS Series XE Electric Actuator, ATEX Explosion-Proof, 2640 In-Lbs, 26 Sec Operation, 24VDC
XE-2640XHS1
XE-2640XHS1
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 2050 In-Lbs, 110VAC, High Speed

Overview

  • Electric Actuator: Two-Position Control - Open/Close
  • Torque: 2640 In-Lbs
  • Operating Time: 13 Seconds
  • Motor Voltage: 115VAC/1PH
  • Temperature Range: -4°F to +158°F (-20°C to +70°C)
  • Indication: Manual Position and LED Open/Close
  • Explosion Proof ATEX Eexd II B&C T4

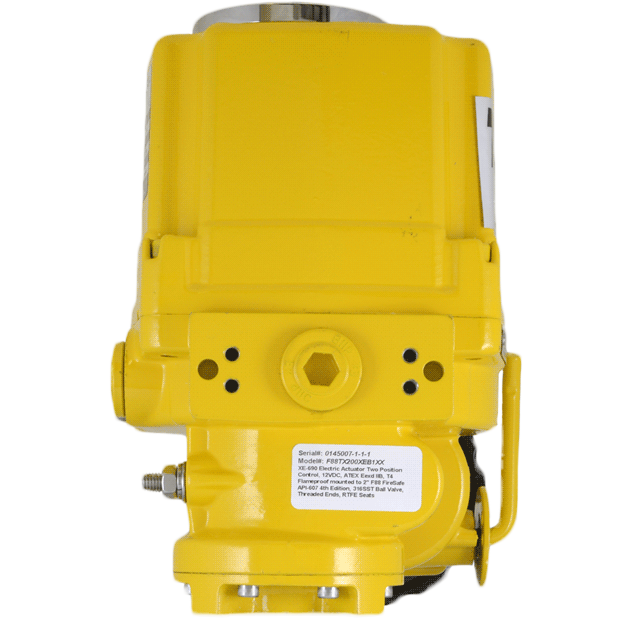

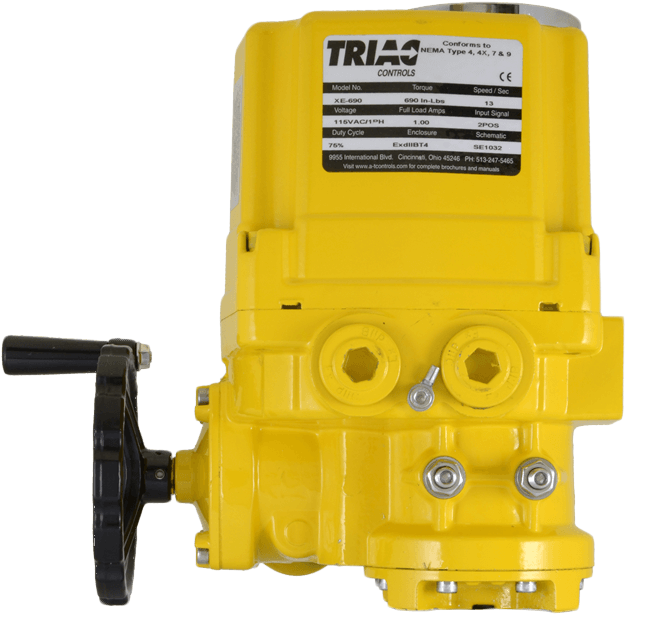

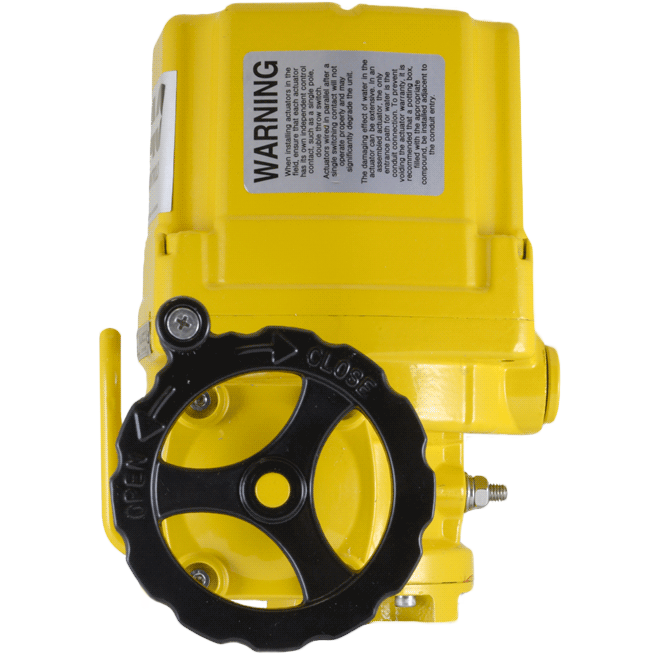

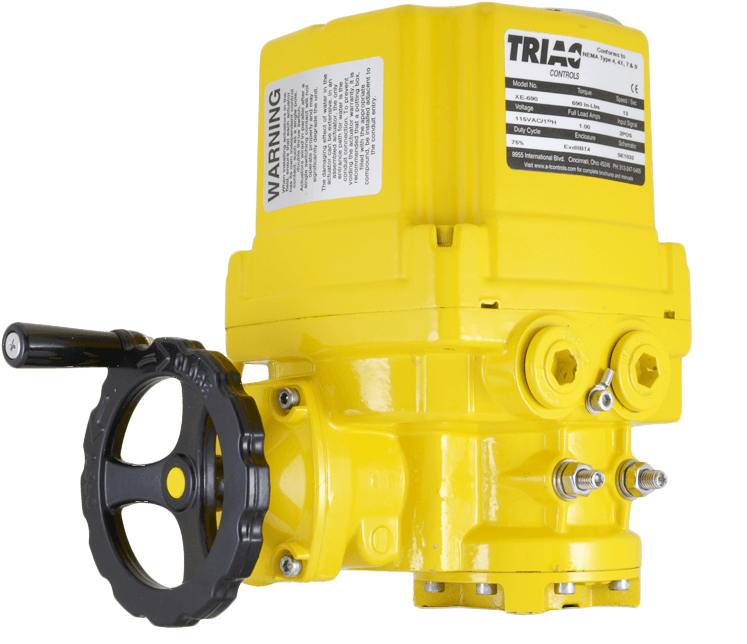

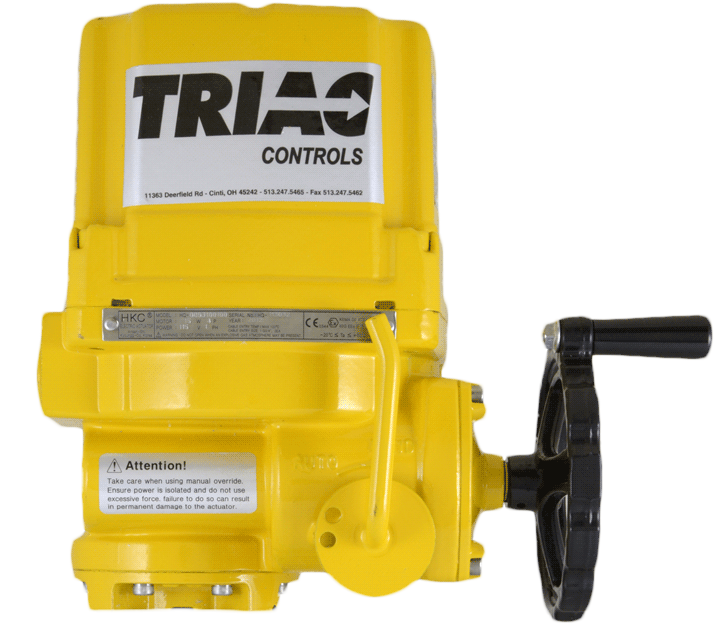

XE-690-A
XE-690-A
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 24VDC/24VAC

Overview

Triac Electric Actuator
  • 690 In-Lbs
  • 13 Second Operation
  • 24VAC / 24VDC
  • On-Off Control
  • Compartment Heater & Thermostat
  • (2) Auxiliary Limit Switches with 4 Independent CAMS
  • Diecast Anodized Aluminum Polyester Coated Construction
  • Class F Motor
  • Manual Override
  • (2) 3/4" NPT Conduit Connections
  • F07 ISO Mounting Pad
  • 17MM (0.669) Star Output Drive
  • ATEX / IECEx II 2G Ex d IIB T4, Gb, IP67
  • Color-Yellow
XE-690-A-X
XE-690-A-X
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 24VDC/24VAC

Overview

  • Electric Actuator: Two-Position Control - Open/Close
  • Torque: 690 In-Lbs
  • Motor Voltage: 24V AC/DC
  • Temperature Range: -4°F to +158°F (-20°C to +70°C)
  • Indication: Manual Position and LED Open/Close
  • Explosion Proof ATEX Eexd II B&C T4
XE-690XHS2XXY
XE-690XHS2XXY
A-T CONTROLS XE Series Electric Actuator, ATEX/IECEx Explosion Proof, On/Off, 690 In-Lbs, 110VAC, High Speed

Overview

  • XE:  Explosion Proof Design, ATEX & IECEx Ex d IIB T4 Gb, IP67
    • Control: (2) Position Control (Open / Close)

  • 6900: Actuator Size - 690 In-Lbs
  • X: Voltage: 115VAC/1PH
    • CycleTime: 13 Seconds
    • Motor: 15 Watts

  • HS2: High Speed Options:
    • Output Torque (In-Lbs): 290
    • Speed (60Hz) (seconds): 4.5

  • Y: 180º Operation
1 - 30 of 30 Part Numbers

WE/XE/SE/FE

Model

Control Type

  • view details

Actuator Performance

Actuator Size

Actuator Size

Motor Voltage

  • view details

Control Options

  • view details

High Speed Options

Transmitter

Potentiometer

Operation

Temperature Options

Indicator

  • view details

Switch Option

  • view details

Specifications

Ambient Temperature Range

  • -20° to 70° C (-4° to 158° F), Optional -40° C (-40° F) Low Temp Kit

Approvals & Certifications

  • ATEX/IECEx Ex D IIB T4 Gb
  • CSA

Conduit Connection

  • 2 x 3/4" NPT

Electrical Connectors

  • Terminal Block: Spring Loaded Lever Push Typical

Electrical Rating

  • 16 A at 1/2 hp 125/250 Vac, 0.6 A at 125 Vdc, 0.3 A at 250 Vdc

Enclosure Finish

  • Anodizing Treatment Before Dry Powder, Polyester

Environmental Protection

  • CSA 4, 4X, 6
  • CSA 4X
  • CSA 6
  • IP67
  • Submersible Enclosure IP68

Heater

  • 7-10 W Anti-Condensation Space Heater

Humidity

  • 90% Relative Humidity, Maximum

Indication

  • Continuous Position Indicator Lamps (Open, Close, Torque)

Materials of Construction

  • Al Bronze
  • Aluminum Alloy
  • Polycarbonate
  • Steel

Motor Type

  • Class F Reversible Induction Motor

Motor Voltages

  • 115 Vac / 1-Phase
  • 12 Vdc
  • 220 Vac / 1-Phase
  • 220 Vac / 3-Phase
  • 24 Vac / 1-Phase
  • 24 Vac/Vdc
  • 24 Vdc (Requires Additional Relays for Customer Supplied Wiring)
  • 380 Vac / 3-Phase
  • 440 Vac / 3-Phase
  • 460 Vac / 3-Phase
  • 480 Vac / 3-Phase

Mounting

  • Easy Mounting Base ISO 5211 Standard

Operation

  • 120°
  • 180°
  • 270°

Options

  • 1,000 ohm Potentiometer
  • 10,000 ohm Potentiometer
  • -40° C (-40° F) Low Temp Kit
  • 5,000 ohm Potentiometer

Override

  • Manual Override: Declutching Mechanism

Stopper

  • Mechanical Stopper: Open/Close (External Adjustable Screws)

Switch Type

  • Open/Close SPDT

Torque

  • 690 to 80,000 In/Lbs

Vibration

  • XYZ 10 G, 0.2~34Hz, 30 minutes
WE Series - Weatherproof and XE Series - explosion-proof electric actuators are specially designed for quarter turn operating applications such as Ball valves, Butterfly valves, Plug valves, Dampers and similar valve automation usages.
Features
  • High corrosion resistance due to anodizing on the inside and outside and polyester powder coating on the outside.
  • Available in 1 Phase / 3 Phase, all motors are custom built for high-torque, low current raw and the highest duty cycle ratings offered. Fan Cooled Motor is standard on model XE 690.
  • Easy mounting base standard to ISO 5211
  • Standard four Limit Switches- (2) Auxiliary Limit Switches
  • A drain slot is provided to eliminate water build up on window
  • Torque Switch System
  • Double reduction worm gear assembly is self-locking with minimum blacklash.
  • Option: Illuminated Red (Close), Green (Open), Yellow (Over Torque)
