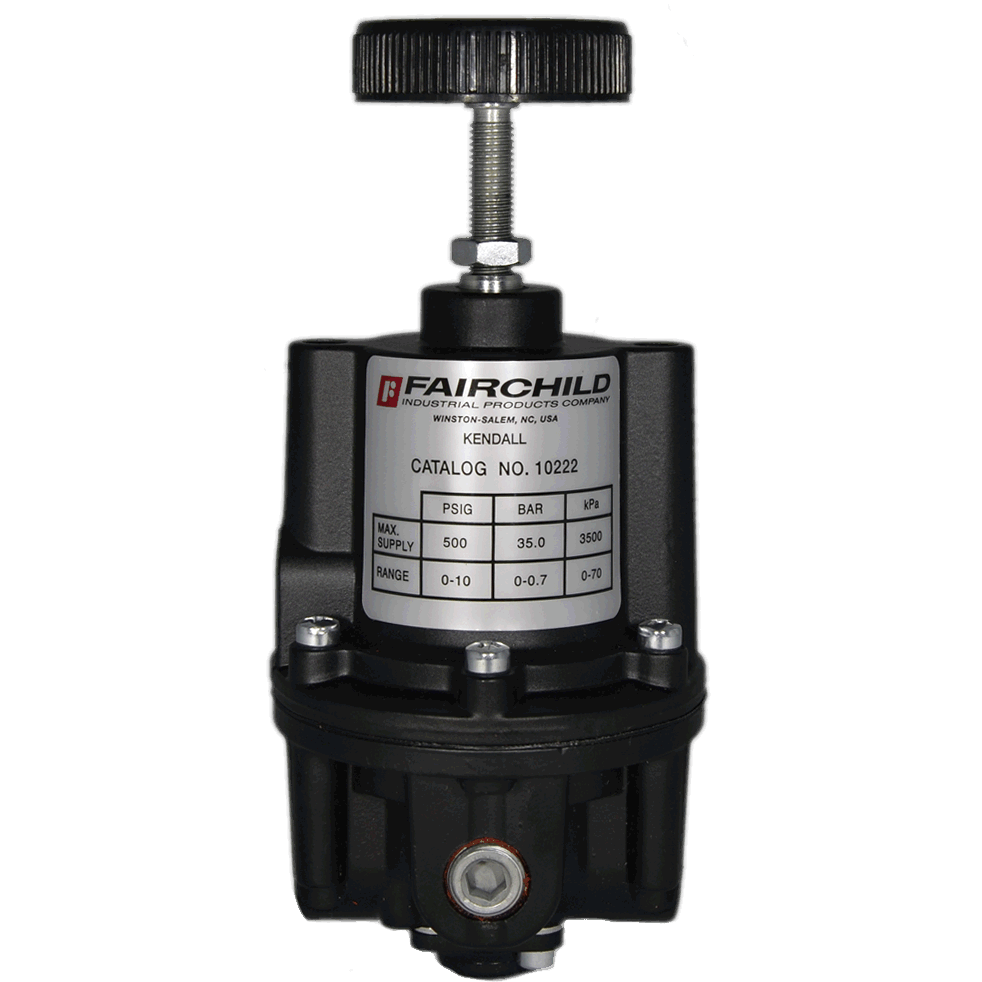

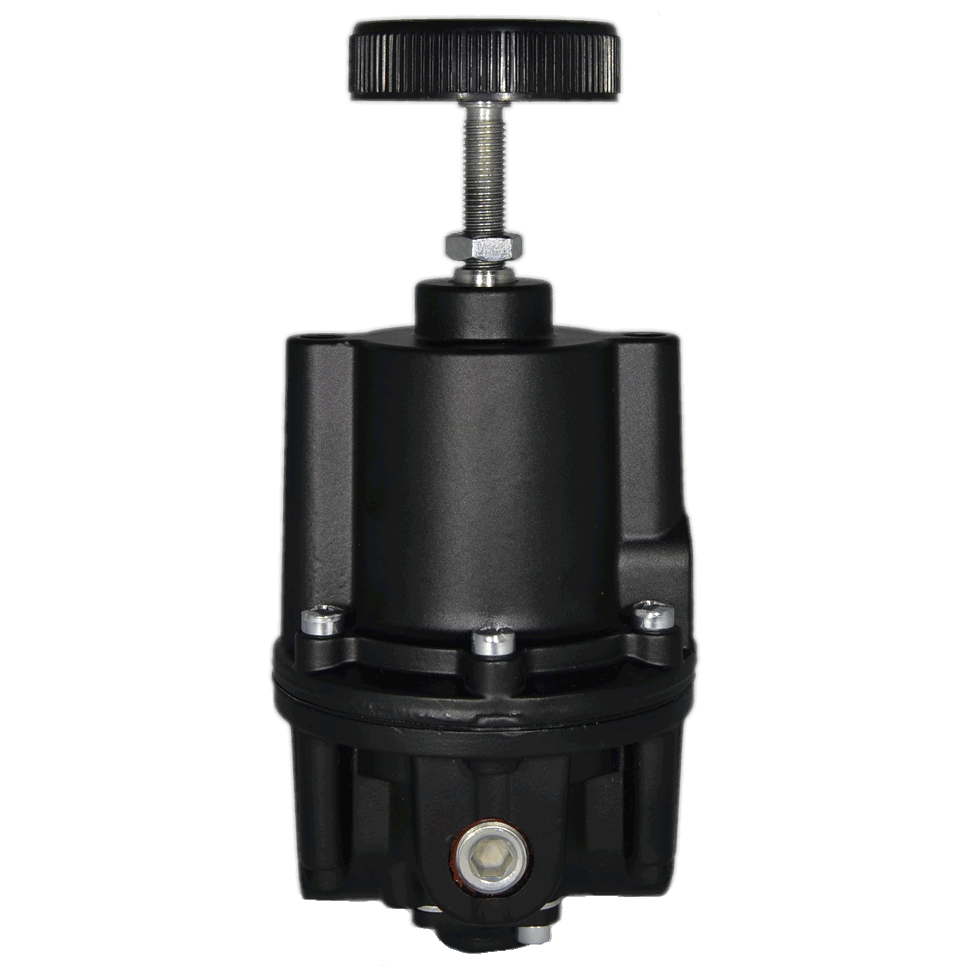

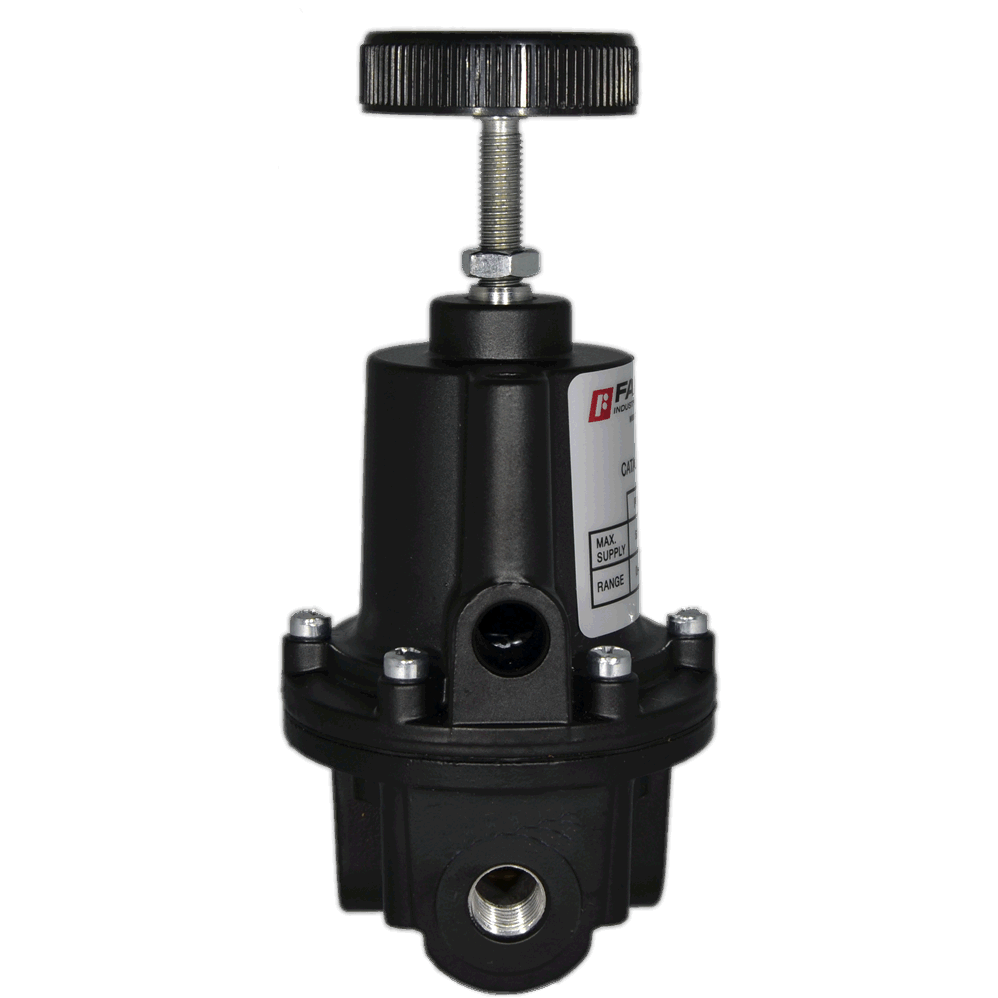

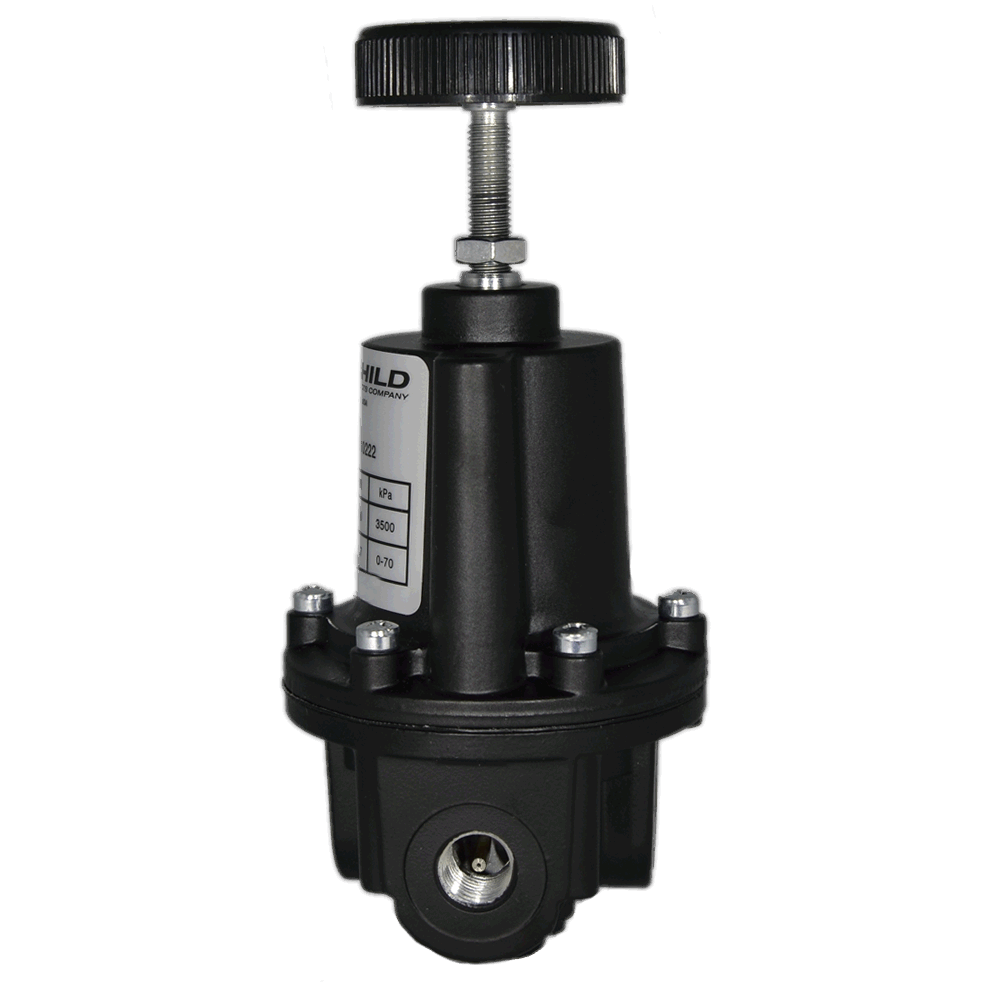

Model 10 Pneumatic Pressure Regulator

Brand: Fairchild Industrial Products
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 48 of 183 Part Numbers
10202
10202
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10202ET
10202ET
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Tapped Exhaust, Tamper Proof

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust
    • Tamper Proof
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10202J
10202J
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Fluorocarbon Elastomers
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10202JN
10202JN
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers, Non-Relieving

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Fluorocarbon (Viton)

10202L
10202L
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Low Flow

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Flow
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10202N
10202N
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Non-Relieving

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10202P
10202P
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Panel Mount

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Panel Mount
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10202PB
10202PB
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 1/4" NPT, Panel Mount, Low Bleed

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • (P) Panel Mount
    • (B) Low Bleed

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10203
10203
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10203ET
10203ET
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT, Tapped Exhaust, Tamper Proof

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Options:
    • Tapped Exhaust
    • Tamper Proof
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10203P
10203P
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-20 psig, 0-150 kPa, 3/8" NPT, Panel Mount

Overview

  • Set Point Range: 0-20 psig, 0-1.5 bar, 0-150 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Options:  Panel Mount
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10212
10212
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10212BE
10212BE
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Low Bleed, Tapped Exhaust

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Bleed
    • Tapped Exhaust

  • Materials of Construction:
  • Body & Housing: Aluminum
  • Trim: Zinc Plated Steel, Brass
  • Diaphragms: Buna N on Dacron
10212C
10212C
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Check Valve

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Check Valve
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10212E
10212E
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Tapped Exhaust

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10212H
10212H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" BSPP (Parallel)
10212N
10212N
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Non-Relieving

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10212T
10212T
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" NPT, Tamper Proof

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tamper Proof
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10212U
10212U
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/4" BSPT (Tapered)

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" BSPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10213
10213
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 3/8" NPT

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10213P
10213P
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 3/8" NPT, Panel Mount

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Options: Panel Mount
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10214
10214
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-2 psig, 0-15 kPa, 1/2" NPT

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10214BPT
10214BPT
FAIRCHILD Model 10BP Pneumatic Precision Back Pressure Regulator, 0-2 psig, 0-15 kPa, 1/2" NPT, Tamper Proof

Overview

  • Set Point Range: 0-2 psig, 0-0.15 bar, 0-15 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

  • Options:
    • ​BSPP (Parallel).  *Inlet and Outlet Ports only

10214E-C21359
10214E-C21359
FAIRCHILD Model 10 Pneumatic Regulator, 0-2 psig, 0-15 kPa, 1/2" NPT, Tapped Exhaust
10214E-Z21359
10214E-Z21359
FAIRCHILD Model 10 Pneumatic Regulator, 0-2 psig, 0-15 kPa, 1/2" NPT, Tapped Exhaust
10222
10222
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222B
10222B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Low Bleed

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    •  Low Bleed

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10222BE
10222BE
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Low Bleed, Tapped Exhaust

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Bleed
    • Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222BJ
10222BJ
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Low Bleed, Fluorocarbon (Viton) Elastomers

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    •  Low Bleed

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Viton

10222C
10222C
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Check Valve

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Check Valve
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222D
10222D
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, No Bleed

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    •  Non Bleeding
    • Relieving

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10222E
10222E
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Tapped Exhaust

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222H
10222H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" BSPP (Parallel)

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10222JN
10222JN
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Fluorocarbon (Viton) Elastomers, Non-Relieving

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Elastomers: Fluorocarbon (Viton)

10222L
10222L
FAIRCHILD Model 10 Pneumatic Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Low Flow
10222N
10222N
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Non-Relieving

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222NSC
10222NSC
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 1/4" NPT, Non-Relieving, Special Cleaning

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Non-Relieving
    • Screwdriver Adjust
    • Check Valve
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10222T
10222T
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Tamper Proof

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Tamper Proof

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10222-Z21957
10222-Z21957
FAIRCHILD Model 10 Pneumatic Regulator, 0-10 psig, 0-70 kPa, 1/4" NPT, Customer Special
10223
10223
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" NPT

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10223H
10223H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 3/8" BSPP (Parallel)

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 3/8" BSPP
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10223N
10223N
FAIRCHILD Model 10 Pneumatic Regulator, 0-10 psig, 0-70 kPa, 3/8" NPT, Non-Relieving
10224
10224
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/2" NPT

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/2" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10224H
10224H
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/2" BSPP (Parallel)

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/2" BSPP
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10224T
10224T
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0-10 psig, 0-70 kPa, 1/2" NPT, Tamper Proof

Overview

  • Set Point Range: 0-10 psig, 0-0.7 bar, 0-70 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/2" NPT
  • Options:
    • Tamper Proof

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10232
10232
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
10232B
10232B
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Low Bleed

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Bleed

  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron

10232BE
10232BE
FAIRCHILD Model 10 Pneumatic Precision Regulator, 0.5-30 psig, 3-200 kPa, 1/4" NPT, Low Bleed, Tapped Exhaust

Overview

  • Set Point Range: 0.5-30 psig, 0.03-2 bar, 3-200 kPa
  • Supply Pressure (Maximum): 500 psig, 35 bar, 3500 kPa
  • Pipe Size: 1/4" NPT
  • Options:
    • Low Bleed
    • Tapped Exhaust
  • Materials of Construction:
    • Body & Housing: Aluminum
    • Trim: Zinc Plated Steel, Brass
    • Diaphragms: Buna N on Dacron
1 - 48 of 183 Part Numbers

Model 10

Pressure Range

Port Size

Port Thread

Elastomers

  • view details

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Actuation Adjustment Means

Relief

Exhaust Port

Mounting

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Output Options

Yellow Metals

Specifications

Actuator Type

  • Knob Adjust
  • Plunger Operated
  • Screwdriver Adjust
  • Tamper-Proof

Ambient Temperature Range

  • -40° to 93° C (-40° to 200° F)

BSP Connection

  • 1/2" BSPP Female
  • 1/2" BSPT Female
  • 1/4" BSPP Female
  • 1/4" BSPT Female
  • 3/8" BSPP Female
  • 3/8" BSPT Female

Elastomers

  • Buna-N on Dacron
  • FluoroCarbon (Viton)
  • Silicone

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Acceptable for use in Zones 1 & 2 for Gas Atmosphere, Groups IIA & IIB & Zones 21 & 22 for Dust Atmospheres

Exhaust Capacity - Relieving Units Only

  • 5.5 scfm
  • 5.5 scfm (9.35 m³/hour)
  • 9.4 m³/hour

Flow Capacity

  • 40 scfm
  • 40 scfm (68 m³/hour) at psig: 100 (bar: 7, kPa: 700) Supply & psig: 20 (bar: 1.5, kPa: 150) Set Point
  • 68 m³/hour

Media

  • Compressed Air
  • Gas

Mounting

  • None
  • Panel Mount

NPT Connection

  • 1/2" NPT Female
  • 1/4" NPT Female
  • 3/8" NPT Female

Output Options

  • Check Valve
  • None

Pressure Range

  • bar: 0 to 1.36
  • bar: 0 to 28
  • bar: 0.034 to 2.04
  • bar: 0.068 to 4.08
  • bar: 0.136 to 10.20
  • bar: 0.204 to 13.60
  • bar: 0.34 to 27.20
  • kPa: 0 to 137
  • kPa: 0 to 2,800
  • kPa: 13.6 to 1,020
  • kPa: 20.4 to 1,360
  • kPa: 3.4 to 204
  • kPa: 34 to 2,720
  • kPa: 6.8 to 408
  • psi: 0.5 to 30
  • psig: 0 to 20
  • psig: 0 to 400
  • psig: 1 to 60
  • psig: 2 to 150
  • psig: 3 to 200
  • psig: 5 to 400

Relief

  • Low Bleed
  • Low Flow
  • Non-Relieving
  • Relieving

Sensitivity

  • 1/8" WC (0.32 cm)

Supply Pressure - Maximum

  • bar: 35
  • kPa: 3,500
  • psig: 500

Supply Pressure Effect

  • less than 0.007 bar
  • less than psi: 0.01 (bar: 0.0007, kPa: 0.7)
  • less than psig: 0.1 (bar: 0.007, kPa: 0.7)
  • psig: 0.1 (bar: 0.007, kPa: 0.7) for a psig: 100 (bar: 7, kPa: 700) Change in Supply Pressure

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
  • Tapped Exhaust
The Rotork Fairchild Model 10 is a precision pressure regulator designed for applications that require high performance and accurate process control. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

The Model 10 features control sensitivity of 1/8" water column and a balanced supply valve to deliver consistent and reliable precision accuracy to maintain your desired set point regardless of supply pressure changes or conditions.

The Fairchild Model 10 pressure regulator will handle a 500 psi, 34 BAR, maximum supply pressure and offers nine (9) output pressure ranges from 0-2 psi, 0-0.15 BAR, 0-15 kPa, up to 5-400 psi, 0.3-28 BAR, 35-2,800 kPa. The Model 10 precision regulator offers 40 SCFM, 68 m3/hr flow capacity.

Typical Part Numbers are 10212, 10222, 10232, 10242, 10252, 10262, 10272, 10282, 10292, 10233, 10243, 10253, 10263, 10273, 10283, 10293
Features
  • Control sensitivity of 1/8" water column allows use in precision processes
  • Pressure balanced supply valve prevents supply pressure changes from affecting the setpoint
  • Optional check valve permits Backflow of downstream pressure when supply is opened to atmosphere
  • Separate control chamber isolates the diaphragm from the main flow to eliminate hunting and buzzing
  • An aspirator tube compensates downstream pressure droop under flow conditions
  • Canadian Registration Number (CRN) certification for all territories and provinces
  • NO Yellow Metals available for harsh media

Typical Applications

  • General Industrial
  • Packaging
  • Conveyance
  • Production Lines
  • Assembly

Markets
  • Factory Automation
  • Automotive
  • Heavy Industries
