Model T6000 Electro-Pneumatic Pressure Transducer

Brand: Fairchild Industrial Products
The Rotork Fairchild T6000 compact size E/P, I/P pressure transducer is a field reversible unit that provides an output directly or inversely proportional to the input signal. Its six available output pressure ranges and six available input signal ranges meet most process and machine requirements.

The T6000 Series is designed for precision applications providing maximum versatility. The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations and servicing or calibration is quick and easy.

An extended range T6000 I/P Transducer is also available, which provides output pressure capability up to 0-120 psi [0-8.0 BAR], (0-800 kPa).

The Extended Unit is made up of three sections, the Primary Control Section, the Pneumatic Relay Section, and an additional Pneumatic Relay Section. The additional Relay Section is used to amplify the output pressure.
Features
  • Field reversible
  • RFI/EMI Protection
  • Six output pressure ranges
  • Six input signal ranges
  • Compact size
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and bottom
show more

The Part Numbers & SKUs listed below have been added to Stores by Sellers, but they have not yet listed a price or inventory. Find the Part Number & SKUs you're looking for and request a quote from any of the affiliated Sellers!

1 - 48 of 59 Part Numbers
TA6000-001
TA6000-001
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 0-10 Vdc Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-002
TA6000-002
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 0-10 Vdc Input, 3-27 psig Output

Overview

  • Output Range: 3-27 psig, 0.2-1.8 bar, 20-180 kPa
  • Supply Pressure: 32-120 psig, 2.2-8 bar, 220-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-003
TA6000-003
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 0-10 Vdc Input, 6-30 psig Output

Overview

  • Output Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
  • Supply Pressure: 35-120 psig, 2.4-8 bar, 240-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-004
TA6000-004
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 0-10 Vdc Input, 0-30 psig Output

Overview

  • Extended Output Range: 0-30 psig, 0-2 bar, 0-200 kPa
  • Extended Supply Pressure: 35-150 psig, 2.5-10 bar, 250-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-006
TA6000-006
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 0-10 Vdc Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Extended Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-401
TA6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-402
TA6000-402
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 4-20 mA Input, 3-27 psig Output

Overview

  • Output Range: 3-27 psig, 0.2-1.8 bar, 20-180 kPa
  • Supply Pressure: 32-120 psig, 2.2-8 bar, 220-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TA6000-405
TA6000-405
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 4-20 mA Input, 0-60 psig Output

Overview

  • Extended Output Range: 0-60 psig, 0-4.0 bar, 0-400 kPa
  • Extended Supply Pressure: 65-150 psig, 4.6-10 bar, 460-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TA6000-406
TA6000-406
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, 4-20 mA Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Extended Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-306
TACI6000-306
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 10-50 mA Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Extended Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 10-15mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-401
TACI6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-402
TACI6000-402
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 3-27 psig Output

Overview

  • Output Range: 3-27 psig, 0.2-1.8 bar, 20-180 kPa
  • Supply Pressure: 32-120 psig, 2.2-8 bar, 220-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

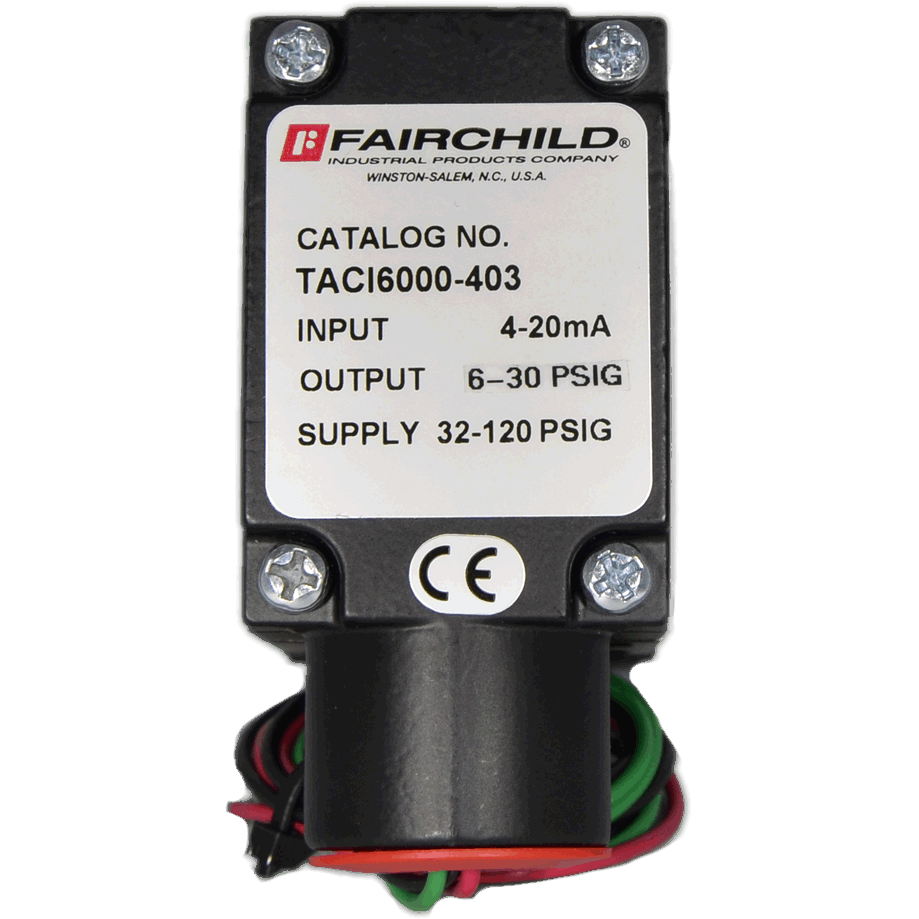

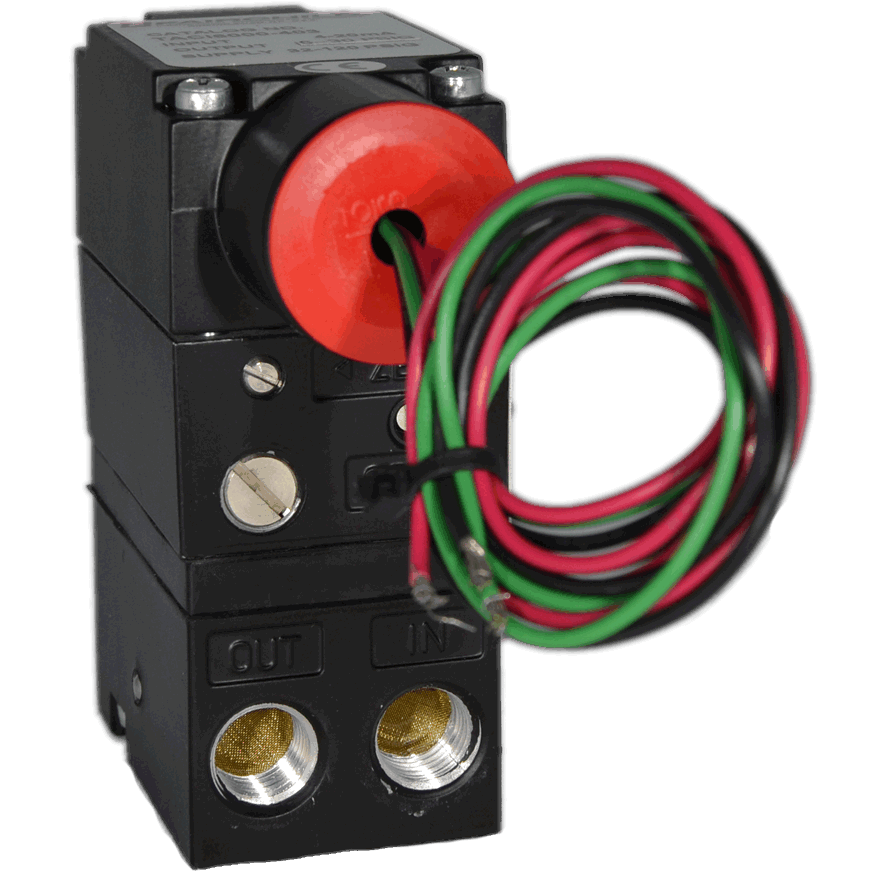

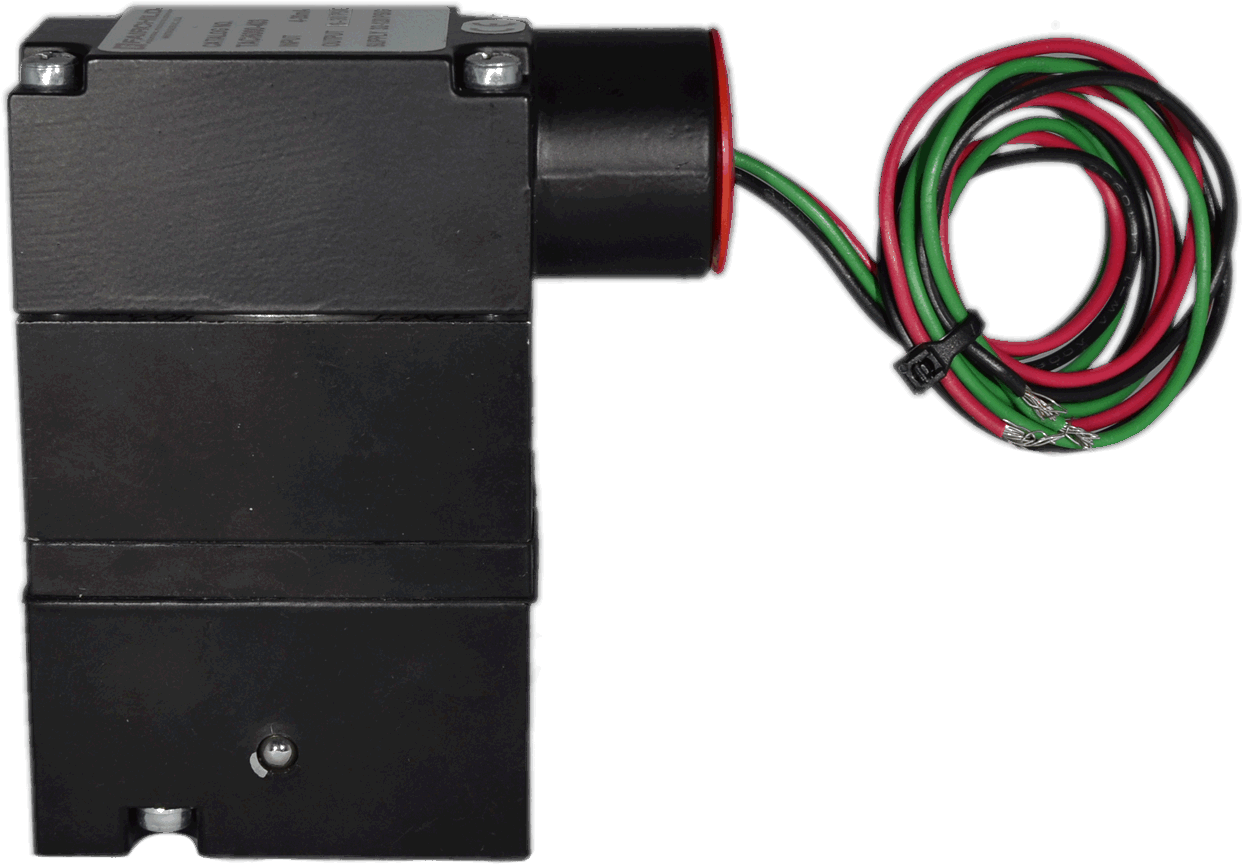

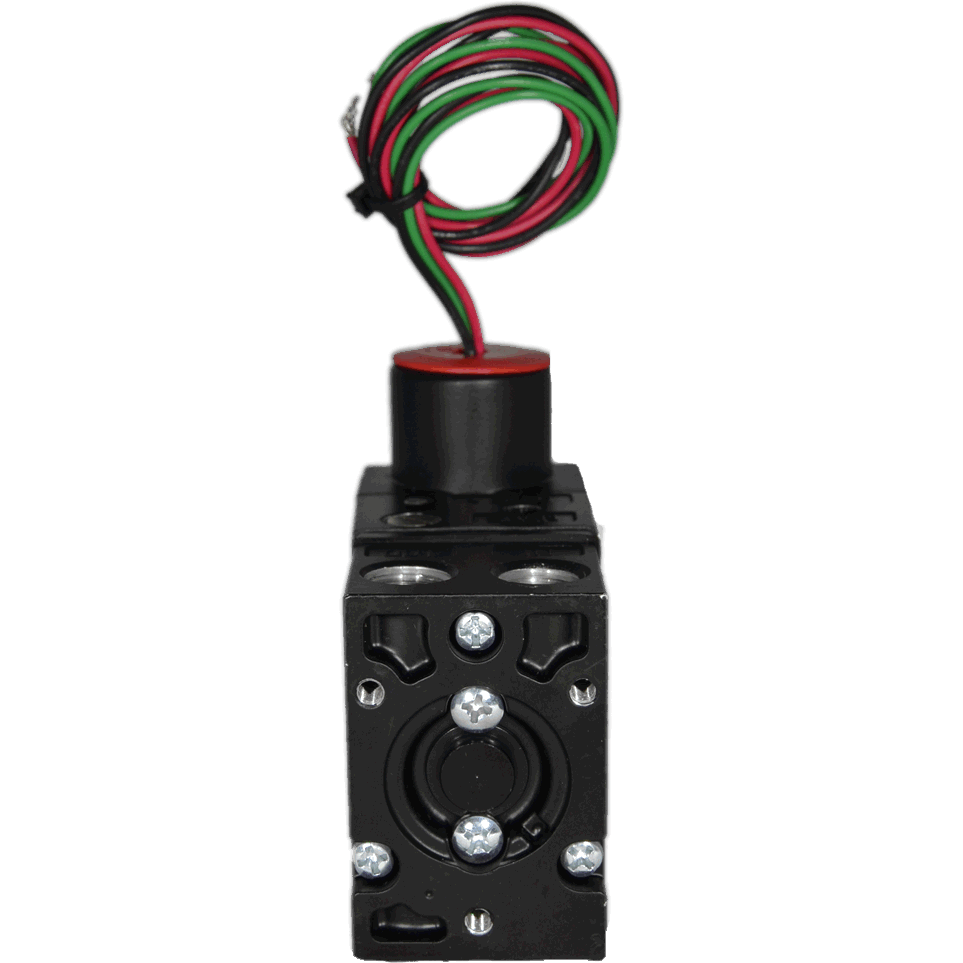

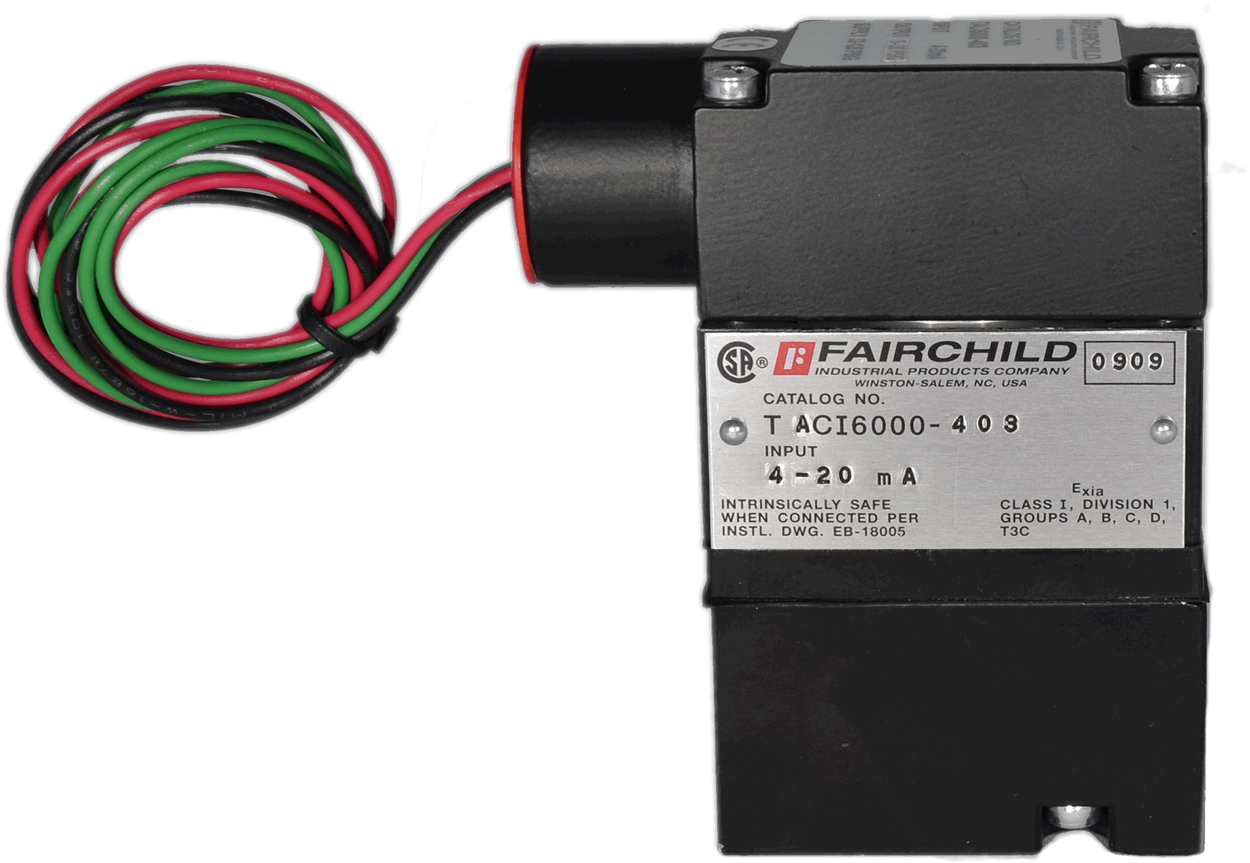

TACI6000-403
TACI6000-403
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 6-30 psig Output

Overview

  • Output Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
  • Supply Pressure: 35-120 psig, 2.4-8 bar, 240-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-404
TACI6000-404
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 0-30 psig Output

Overview

  • Extended Output Range: 0-30 psig, 0-2.0 bar, 0-200 kPa
  • Extended Supply Pressure: 35-150 psig, 2.5-10 bar, 250-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-405
TACI6000-405
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 0-60 psig Output

Overview

  • Extended Output Range: 0-60 psig, 0-4.0 bar, 0-400 kPa
  • Extended Supply Pressure: 65-150 psig, 4.6-10 bar, 460-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TACI6000-406
TACI6000-406
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, CSA, Intrinsically Safe, 4-20 mA Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8.0 bar, 0-800 kPa
  • Extended Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TAFI6000-401
TAFI6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, FM, Intrinsically Safe, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Factory Mutual
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TAFI6000-404
TAFI6000-404
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, FM, Intrinsically Safe, 4-20 mA Input, 0-30 psig Output

Overview

  • Output Range: 0-30 psig, 0-2 bar, 0-200 kPa
  • Supply Pressure: 35-150 psig, 2.5-10 bar, 250-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Factory Mutual
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TAFI6000-405
TAFI6000-405
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, 1/2" NPT Conduit Fitting with Pigtail, FM, Intrinsically Safe, 4-20 mA Input, 0-60 psig Output

Overview

  • Output Range: 0-60 psig, 0-4 bar, 0-400 kPa
  • Supply Pressure: 65-150 psig, 4.6-10 bar, 460-1000 kPa
  • Electrical Connections: 1/2" NPT Conduit w/ Pigtail
  • Underwriting Group: Factory Mutual
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TCXPD6000-401
TCXPD6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, CSA, Explosion-Proof, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: NEMA 4X/IP65
  • Underwriting Group: Canadian Standards
  • Approval Class: Explosion Proof
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TCXPD6000-403
TCXPD6000-403
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, CSA, Explosion-Proof, 4-20 mA Input, 6-30 psig Output

Overview

  • Output Range: 6-30 psig, 0.4-2 bar, 40-200 kPa
  • Supply Pressure: 35-120 psig, 2.4-8 bar, 240-800 kPa
  • Electrical Connections: NEMA 4X/IP65
  • Underwriting Group: Canadian Standards
  • Approval Class: Explosion Proof
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TCXPD6000-416
TCXPD6000-416
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, CSA, Explosion-Proof, 4-20 mA Input, 0-8 bar Output

Overview

  • Output Range: 0-8 bar
  • Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: NEMA 4X/IP65
  • Underwriting Group: Canadian Standards
  • Approval Class: Explosion Proof
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-401
TD6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-401U
TD6000-401U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 3-15 psig Output, BSPT (Tapered) Threads

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-402
TD6000-402
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 3-27 psig Output

Overview

  • Output Range: 3-27 psig
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-403
TD6000-403
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 6-30 psig Output

Overview

  • Output Range: 6-30 psig, 0.4-2.1 bar, 41.4-206.8 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-404
TD6000-404
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-30 psig Output

Overview

  • Output Range: 0-30 psig
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-405
TD6000-405
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-60 psig Output

Overview

  • Output Range: 0-60 psig, 0-4.1 bar, 0-413.7 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-406
TD6000-406
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-120 psig Output

Overview

  • Output Range: 0-120 psig, 0-8.27 bar, 0-827.4 kPa
  • Supply Pressure: 125-150 psig, 8.6-10.3 bar, 862-1034 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-406U
TD6000-406U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-120 psig Output, BSPT (Tapered) Threads

Overview

  • Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-411
TD6000-411
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0.2-1 bar Output
TD6000-415UW
TD6000-415UW
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-4 bar Output, BSPT (Tapered) Threads, IP65 Enclosure

Overview

  • Output Range: 0-4 bar
  • Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-416U
TD6000-416U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-8 bar Output, BSPT (Tapered) Threads

Overview

  • Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-421U
TD6000-421U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 20-100 kPa Output, BSPT (Tapered) Threads

Overview

  • Output Range: 20-100 kPa, 3-15 psig, 0.2-1 bar
  • Supply Pressure: 150-800 kPa, 20-120 psig, 1.5-8 bar
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-422U
TD6000-422U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 20-180 kPa Output, BSPT (Tapered) Threads

Overview

  • Output Range: 20-180 kPa, 3-27 psig, 0.2-1.8 bar
  • Supply Pressure: 220-800 kPa, 32-120 psig, 2.2-8 bar
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-424U
TD6000-424U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-200 kPa Output, BSPT (Tapered) Threads

Overview

  • Output Range: 0-200 kPa, 0-29 psig, 0-2 bar
  • Supply Pressure: 220-800 kPa, 32-120 psig, 2.2-8 bar
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TD6000-426U
TD6000-426U
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, 4-20 mA Input, 0-800 kPa Output, BSPT (Tapered) Threads

Overview

  • Output Range: 0-800 kPa, 0-116 psig, 0-8 bar
  • Electrical Connections: DIN 43650
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: BSPT Thread
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TDCI6000-401
TDCI6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, CSA, Intrinsically Safe, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: DIN43650
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TDCI6000-405
TDCI6000-405
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, CSA, Intrinsically Safe, 4-20 mA Input, 0-60 psig Output

Overview

  • Extended Output Range: 0-60 psig, 0-4.0 bar, 0-400 kPa
  • Extended Supply Pressure: 65-150 psig, 4.6-10 bar, 460-1000 kPa
  • Electrical Connections: DIN43650
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TDCI6000-406
TDCI6000-406
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, DIN 43650, CSA, Intrinsically Safe, 4-20 mA Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Extended Supply Pressure: 35-150 psig, 2.5-10 bar, 250-1000 kPa
  • Electrical Connections:
    • DIN43650
  • Underwriting Group: Canadian Standards
  • Approval Class: Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input:
    • 4-20mA
  • Port Size: 1/4"
  • Port Threads: NPT
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TFXPD6000-401W
TFXPD6000-401W
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, FM, Explosion-Proof, 4-20 mA Input, 3-15 psig Output, IP65 Enclosure

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: NEMA 4X/IP65 Explosion Proof
  • Underwriting Group: Factory Mutual
  • Approval Class: Explosion Proof, Dust-Ignition Proof, NEMA 4X/IP65
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Options: IP65 Enclosure
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TFXPDI6000-401
TFXPDI6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, FM, Explosion-Proof, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: NEMA 4X Explosion Proof
  • Underwriting Group: Factory Mutual
  • Approval Class: Explosion Proof, Dust-Ignition Proof, NEMA 4X/IP65, Intrinsically Safe
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TT6000-001
TT6000-001
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 0-10 Vdc Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig, 0.2-1.0 bar, 20-100 kPa
  • Supply Pressure: 20-120 psig, 1.5-8 bar, 150-800 kPa
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TT6000-004
TT6000-004
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 0-10 Vdc Input, 0-30 psig Output

Overview

  • Extended Output Range: 0-30psig, 0-2.0 bar, 0-200 kPa
  • Extended Supply Pressure: 35-150 psig, 2.5-10 bar, 250-1000 kPa
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TT6000-005
TT6000-005
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 0-10 Vdc Input, 0-60 psig Output

Overview

  • Extended Output Range: 0-60 psig, 0-4.0 bar, 0-400 kPa
  • Extended Supply Pressure: 65-150 psig, 4.6-10 bar, 460-1000 kPa
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TT6000-006
TT6000-006
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 0-10 Vdc Input, 0-120 psig Output

Overview

  • Extended Output Range: 0-120 psig, 0-8 bar, 0-800 kPa
  • Extended Supply Pressure: 125-150 psig, 8.8-10 bar, 880-1000 kPa
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 0-10 Vdc
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile
TT6000-401
TT6000-401
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 4-20 mA Input, 3-15 psig Output

Overview

  • Output Range: 3-15 psig
  • Supply Pressure: 20-120 psig
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

TT6000-402
TT6000-402
FAIRCHILD Model T6000 Electro-Pneumatic I/P, E/P Transducer, Terminal Block, 4-20 mA Input, 3-27 psig Output

Overview

  • Output Range: 3-27 psig
  • Supply Pressure: 20-120 psig
  • Electrical Connections: Terminal Block
  • Temperature Range: -20°F to +150°F (-30°C to +65°C)
  • Input: 4-20mA
  • Materials of Construction:
    • Body & Housing: Aluminium
    • Trim: Zinc Plated Steel
    • Orifice: Nickel Plated Brass
    • Diaphragm: Nitrile

1 - 48 of 59 Part Numbers

Model T6000

Electrical Connection

Underwriting Group

Approval Class

Input

Outputs

Port Thread

IP65 Enclosure

Specifications

Accuracy

  • 0.5% to 1.0% (Independent Linearity)

Air Consumption

  • Maximum

Approvals & Certifications

  • ATEX
  • CE
  • CSA
  • FM

BSP Connection

  • 1/4" BSPT Female

Elastomers

  • Nitrile

Electrical Connectors

  • 1/2" NPT Conduit Fitting with Pigtail
  • DIN 43650
  • Junction Box
  • Rack Mount
  • Terminal Block

Enclosure, Body Material

  • Aluminum

Environmental Protection

  • Dust Ignition-Proof
  • Explosion-proof
  • Intrinsically Safe
  • IP65
  • IP66
  • NEMA 4X / IP65, 66

Exhaust Capacity - Relieving Units Only

  • 2 scfm (3.4 m³/hour)

Flow Rate

  • 11 scfm (18.7 m³/hour) at psig: 150 (bar: 10, kPa: 1,000) Supply & Midscale Output - Extended Range
  • 2.5 scfm (4.25 m³/hour) at psig: 25 (bar: 1.7, kPa: 170) Supply & psig: 9 (bar: 0.6, kPa: 60) Output
  • 9 scfm (15.3 m³/hour) at psig: 120 (bar: 8, kPa: 800) Supply & psig: 9 (bar: 0.6, kPa: 60) Output

Hysteresis

  • 0.25% of Full Scale
  • less than 1.0% of Full Scale at psig: 125 (bar: 8.8, kPa: 880)
  • less than 1.0% of Full Scale at psig: 35 (bar: 2.5, kPa: 250)
  • less than 1.0% of Full Scale at psig: 65 (bar: 4.6, kPa: 460)

Input

  • 4-20 mA
  • mA: 10-50
  • Vdc: 0-10
  • Vdc: 0-5
  • Vdc: 1-5
  • Vdc: 1-9

NPT Connection

  • 1/4" NPT Female

Orifice Material

  • Nickel-Plated Brass

Output Pressure

  • bar: 0 to 8
  • kPa: 0 to 800
  • psig: 0 to 120

Process Temperature

  • -30° to 65° C (-20° to 150° F)

Relief

  • Relieving

Repeatability

  • ≤ 0.1% of Full Scale

RFI/EMI Effect

  • < 0.5% of Span at 30 V/m Class 3 Band ABC (20-1,000 MHz) Per SAMA PMC 33.1 1978 & < 0.5% of Span at 10 V/m Level, to 2 GHz Band Per EN 61,000-4-3:1998 +A1 EMC Directive 89/336/EEC European Norms EN 61326

Signal Impedance

  • 3-Wire Voltage Input: 10 Kilohms

Span - Minimum

  • For Output Range psig: 0 to 120 - psig: 50 (bar: 3.5, kPa: 350)
  • For Output Range psig: 0 to 30 - psig: 12 (bar: 0.8, kPa: 80)
  • For Output Range psig: 0 to 60 - psig: 25 (bar: 1.5, kPa: 150)
  • For Output Range psig: 3 to 15 - psig: 5 (bar: 0.35, kPa: 35)
  • For Output Range psig: 3 to 27 - psig: 10 (bar: 0.7, kPa: 70)
  • For Output Range psig: 6 to 30 - psig: 10 (bar: 0.7, kPa: 70)

Span & Zero Adjustments

  • Screwdriver Adjustments Located on Front of Unit

Supply Pressure

  • For Output Range psig: 0 to 120: psig: 125 to 150 (bar: 8.8 to 10, kPa: 880 to 1,000)
  • For Output Range psig: 0 to 30: psig: 35 to 150 (bar: 2.5 to 10, kPa: 250 to 1,000)
  • For Output Range psig: 0 to 60: psig: 65 to 150 (bar: 4.6 to 10, kPa: 460 to 1,000)
  • For Output Range psig: 3 to 15: psig: 20 to 120 (bar: 1.5 to 8, kPa: 150 to 800)
  • For Output Range psig: 3 to 27: psig: 32 to 120 (bar: 2.2 to 8, kPa: 220 to 800)
  • For Output Range psig: 6 to 30: psig: 35 to 120 (bar: 2.4 to 8, kPa: 240 to 800)

Supply Pressure Effect

  • psig: 0.25 (bar: 0.17, kPa: 1.7) for a psig: 25 (bar: 1.7, kPa: 170) Change in Supply Pressure

Supply Voltage

  • 3-Wire Voltage Input: 7.2-30 Vdc, less than 3 mA

Trim Material

  • Brass
  • Zinc-Plated Steel

Vent

  • Straight
The Rotork Fairchild T6000 compact size E/P, I/P pressure transducer is a field reversible unit that provides an output directly or inversely proportional to the input signal. Its six available output pressure ranges and six available input signal ranges meet most process and machine requirements.

The T6000 Series is designed for precision applications providing maximum versatility. The modular construction permits any basic unit to be used in the explosion-proof, rack, wall, pipe, panel, DIN rail or 3, 5, 10, or 15 unit manifold configurations and servicing or calibration is quick and easy.

An extended range T6000 I/P Transducer is also available, which provides output pressure capability up to 0-120 psi [0-8.0 BAR], (0-800 kPa).

The Extended Unit is made up of three sections, the Primary Control Section, the Pneumatic Relay Section, and an additional Pneumatic Relay Section. The additional Relay Section is used to amplify the output pressure.
Features
  • Field reversible
  • RFI/EMI Protection
  • Six output pressure ranges
  • Six input signal ranges
  • Compact size
  • Explosion-Proof NEMA 4X, IP65, Type 4 Enclosure available
  • Input and Output ports on both front and bottom
